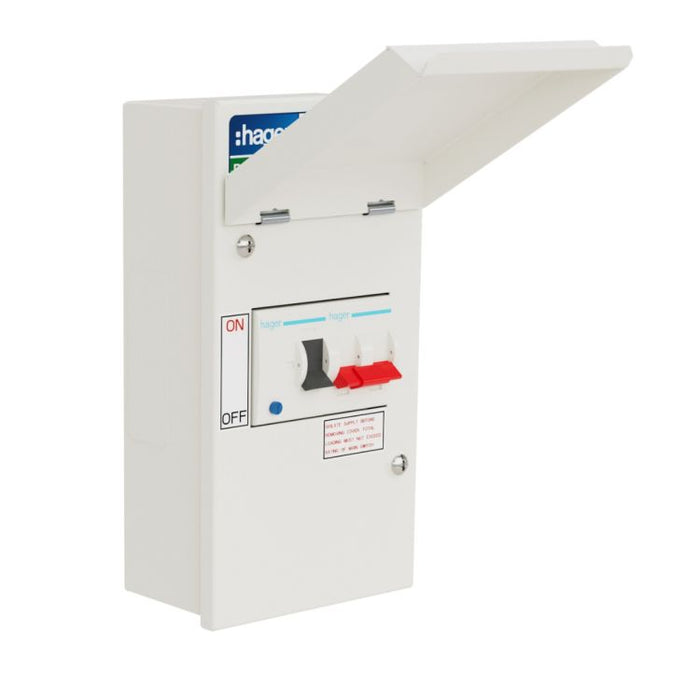

Hager VR440EV 4 Way EV Consumer Unit 100A Main Switch with 40A DP Switch Neutral RCBO
The unit is designed to be installed before the consumer unit or distribution board on an installation fed from the mains supply into the top of the 100A switch with the supply to the car charger/ load being fed from the top of the RCBO. The main earthing conductor is also connected into and out of the earth terminal on the earth bar within the enclosure.
Fitted with a 100A Swith disconnector with 40A RCBO. the RCBO has an InA of 36A for continuous 7.5kW EV charging.
- RCBO rated at 36A for continuous loading for a 3.6kW or 7.5kW power rating
- Ideal when requiring Supply to Electric Vehicle charger
- No space required inside existing consumer unit or distribution board.
