Hager NBN340A 40A Triple Pole B Curve 10kA MCB

Main Image

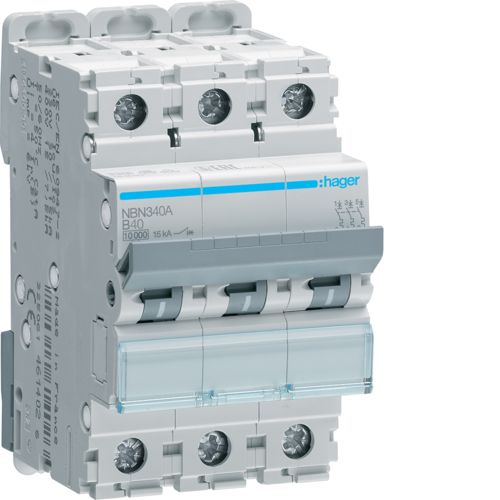

Hager NBN340A 40A Triple Pole B Curve 10kA MCB

Availability:
IN STOCK
SKU NBN340A
Request a quote
£36.66
£36.66 - £36.66
£36.66
£36.50
Inc VAT
£30.42
Exc VAT
£36.50 - £36.50
£30.42
£30.42 - £30.42
£30.42
Product Description
Customer Reviews
Read More...

Hager NBN340A 40A Triple Pole B Curve 10kA MCB

Features
  • Provides protection against short circuits, protection against overload current, control, isolation, trip free mechanism
  • The state of isolation is clearly indicated by the “OFF” mechanical position on the toggle with the green colour
  • Connection capacity: 25mm² flexible conductor, 35mm² rigid conductor.
  • Conforms to: BS EN 60898-2 (10kA), BS EN 60947-2 (15kA).

Specification

  • Fixing mode: Din-Rail
  • Rated voltage: 400 V AC
  • Rated current: 40A
  • Depth: 70 mm
  • Height: 83 mm
  • Width: 52.5 mm
  • Tightening torque: 2.8Nm
  • Standard text: EN 60898-1 IEC 60947-2
  • Can be accessorized: Yes

Data Sheet:

Click Here for Data Sheet
Product Description

Hager NBN340A 40A Triple Pole B Curve 10kA MCB

Features
  • Provides protection against short circuits, protection against overload current, control, isolation, trip free mechanism
  • The state of isolation is clearly indicated by the “OFF” mechanical position on the toggle with the green colour
  • Connection capacity: 25mm² flexible conductor, 35mm² rigid conductor.
  • Conforms to: BS EN 60898-2 (10kA), BS EN 60947-2 (15kA).

Specification

  • Fixing mode: Din-Rail
  • Rated voltage: 400 V AC
  • Rated current: 40A
  • Depth: 70 mm
  • Height: 83 mm
  • Width: 52.5 mm
  • Tightening torque: 2.8Nm
  • Standard text: EN 60898-1 IEC 60947-2
  • Can be accessorized: Yes

Data Sheet:

Click Here for Data Sheet
