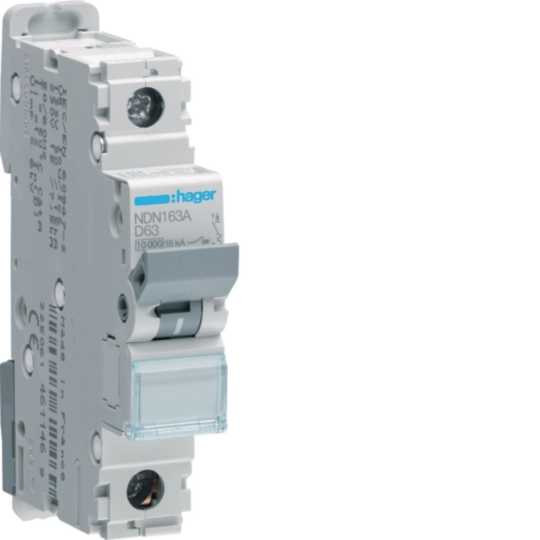

Hager NDN163A 63A Single Pole 1 Module D Curve 10kA/15kA MCB
- Provides protection against short circuits, protection against overload current, control, isolation, trip free mechanism
- The state of isolation is clearly indicated by the "OFF" mechanical position on the toggle with the green colour.
- Connection capacity: 25mm2flexible conductor, 35mm2rigid conductor.
- Conforms to: BS EN 60898-2 (10kA), BS EN 60947-2 (15kA).
Specification
- Fixing mode: Din-Rail
- Rated voltage: 230-400 V AC
- Rated current: 63A
- Depth: 70 mm
- Height: 83 mm
- Width: 17.5 mm
- Tightening torque: 2.8Nm
- Standard text: EN 60898-1 IEC 60947-2
- Can be accessorized: Yes
