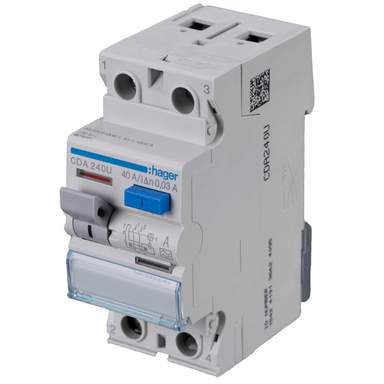

Hager CDA240U 2 Pole 40A 30mA Type A RCD
SKU CDA240U
Availability:
IN STOCK
Original price
£33.49
-
Original price
£33.49
Original price
£33.49
Inc VAT
£27.91
Exc VAT
£33.49
-
£33.49
Current price
£27.91
£27.91
-
£27.91
Current price
£27.91
Hager CDA240U 2 Pole 40A 30mA Type A RCD
- RCD 2P 40A 30mA A Class
- Positive contact indication is provided by the rectangular flag indicator
- Red = Closed
- Green = Open
- Yellow = Tripped
- Indication of trip is provided by the oval flag indicator
- All RCCBs have trip free mechanisms and can be padlocked either on or off with the use of a MZN175
- Conforms to BS EN 61008, IEC1008
Specification
- Number of poles: 2 P
- Number of modules: 2
- Residual current type: A
- Rated operational voltage Ue: 230V
- Rated current: 40 A
- Rated insulation voltage: 500 V
- Rated residual operating current: 30 mA
- Rated conditional short-circuit current Inc according to EN 61008-1: 6 kA
- Depth of installed product: 70 mm
- Height of installed product: 83 mm
- Width of installed product: 35 mm
Data Sheet:
Click Here for Data Sheet
