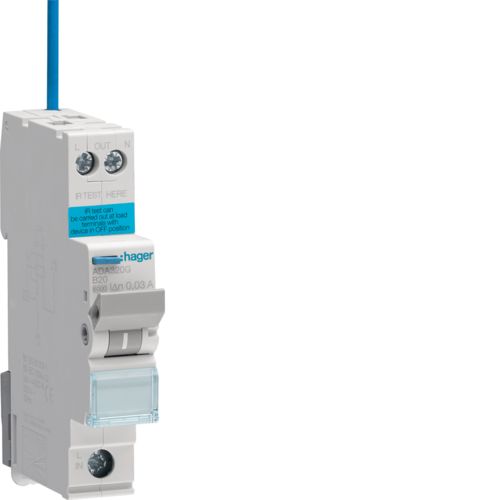

Hager ADA320G 20A SP 1 Module B Curve 6KA 30mA Type A RCBO

• RCBO Electronic 1P 6kA B Curve -20A, 30mA Type A
• Protection devices which combine the overcurrent functions of an MCB with the earth fault functions of an RCCB.
• Connection capacity: Rigid = 16mm², Flexible = 10mm²
• Flying neutral lead: 300mm
• Single pole & solid neutral
• Type A (Pulsating DC Sensitive)
• Operational Voltage: 127-230V AC
• Complies with BS EN 61009-1, BS IEC 1009-2-2
• Sensitivity: 30mA

Specification

• Number of poles: 1 P
• Number of modules: 1
• Residual current type: A
• Curve: B
• Rated operational voltage Ue: 230 / 240 V
• Rated current: 20 A
• Rated insulation voltage: 250 V
• Max operating voltage: 253 V
• Rated residual operating current: 30 mA
• Rated short circuit breaking capacity Icn under 230V AC according IEC60898-1: 6 kA
• Depth of installed product: 70 mm
• Height of installed product: 92 mm
• Width of installed product: 17.7 mm
