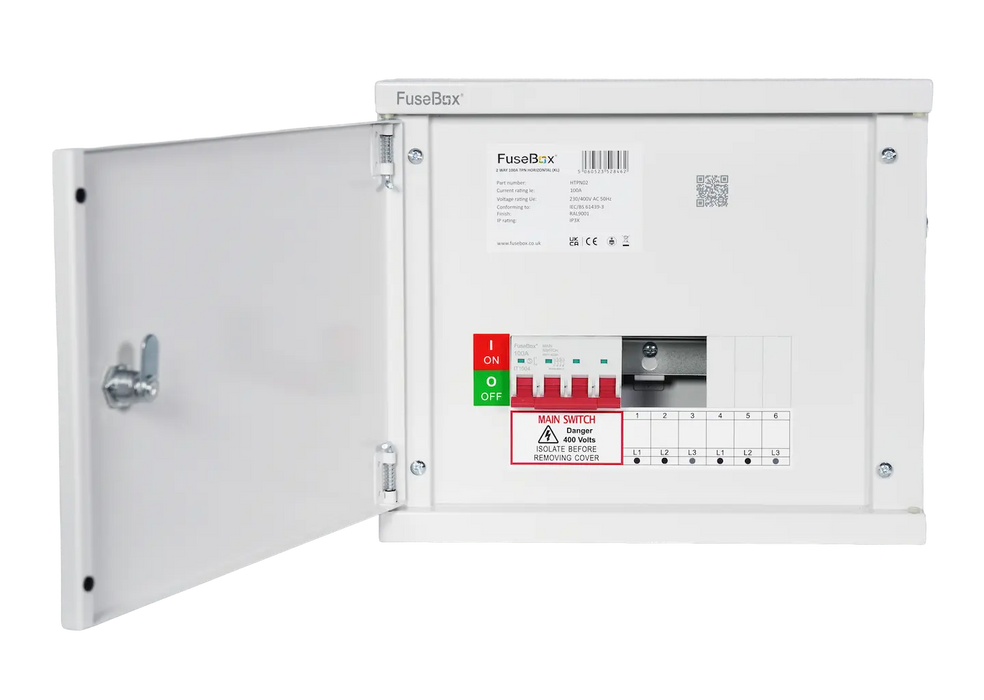

FuseBox HTPN02 2 Way Horizontal TPN Distribution Board with 100A 4P Main Switch

Product Description

The FuseBox HTPN02 Horizontal TPN Distribution Board is a compact 2-way three-phase distribution board designed for installations where vertical wall space is limited. At just 295mm high, it is ideal for electrical cupboards, commercial utility areas and industrial installations where a conventional vertical distribution board may not be suitable.

Despite its compact horizontal format, the HTPN02 provides a spacious internal layout to help make cable routing, wiring and termination straightforward. Contractor-friendly features include a fixed horizontal busbar, removable raised DIN rail and aligned earth and neutral bars for neat and efficient installation.

The board is manufactured from robust 1.2mm steel with a RAL9001 powder-coated finish and includes a 100A 4-pole main switch. Top and bottom gland plates provide flexible cable entry, while the reversible door can be fitted to either side to suit the installation.

Key Features

• 2-way horizontal TPN distribution board
• Compact 295mm-high design for restricted spaces
• Supplied with 100A 4-pole main switch
• Fixed horizontal fork-type busbar
• Spacious internal layout for easier cable routing and termination
• Removable and raised DIN rail for improved wiring access
• Aligned earth and neutral bars for faster and tidier wiring
• Coin-slot door lock for secure and convenient access
• Top and bottom gland plates for flexible cable entry
• No knockouts, providing greater flexibility when glanding
• Reversible door can be fitted to either side
• Easily removable devices
• Robust 1.2mm steel enclosure
• Surface-mounted installation
• IP3X rated
• 16kA short-circuit rating

Technical Specifications

• Manufacturer: FuseBox
• Part Number: HTPN02
• Usable Ways: 2
• Main Switch: 100A 4 Pole
• Rated Voltage: 400V
• Frequency: 50Hz
• Short-Circuit Rating: 16kA
• Busbar Type: Fork
• IP Rating: IP3X
• Mounting Type: Surface
• Material: Steel
• Enclosure Thickness: 1.2mm
• Finish: RAL9001 powder coated
• Cable Entry: Top and bottom gland plates
• Dimensions (H x W x D): 295 x 348 x 113mm
• Standard: EN 61439-11
