Product Description

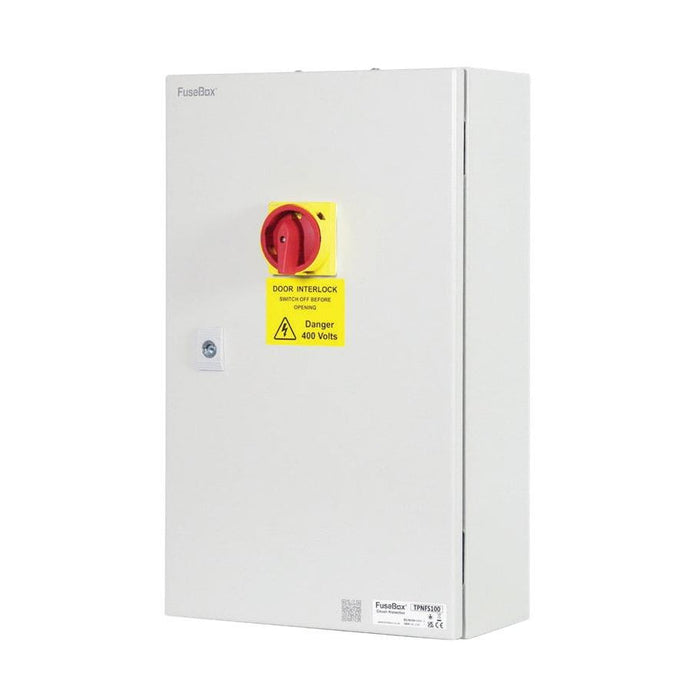

The FuseBox TPNFS080 80A TP&N Metal Fused Switch provides robust circuit isolation and reliable overload protection for high-current commercial and industrial installations. Combining a rotary isolator with integrated fuse protection, it delivers dependable performance where safety and durability are essential.

Rated at 80A (AC-23A), this model is supplied with 22×58 gG fuses, ensuring effective mixed-load protection for demanding electrical equipment. A highly visible red and yellow rotary handle offers clear ON/OFF indication, while the mechanically interlocked door prevents access when the switch is in the ON position.

For added safety during servicing, the handle can be padlocked in the OFF position using up to three padlocks. The switch is housed in a rugged 1.2mm steel enclosure with a RAL 7035 powder-coated finish and an IP65 rating, making it suitable for harsh and industrial environments.

Designed with electricians in mind, the generous internal layout allows for fast, neat cable termination. The unit is fully compatible with FuseBox main switches and TP&N consumer units.

Key Features & Benefits

• 80A AC-23A rated TP&N fused switch for commercial and industrial applications
• Supplied with 22×58 gG fuses for reliable mixed-load protection
• Combines manual isolation with automatic overload protection
• IP65-rated enclosure for demanding and industrial environments
• Heavy-duty 1.2mm steel construction with RAL 7035 grey powder-coat finish
• Red/yellow rotary handle with clear ON/OFF status indication
• Mechanically interlocked door prevents access when energised
• Padlockable handle in OFF position (supports up to 3 padlocks)
• Removable top and bottom gland plates for flexible cable entry
• Spacious internal layout for fast, tidy cable termination
• Operating temperature range from -25°C to +55°C
