Product Description

The FuseBox TPNFS063 63A TP&N Metal Fused Switch is a heavy-duty isolation and protection solution, combining a rotary isolator with integrated fuse protection for safe operation of high-current circuits in commercial and industrial environments.

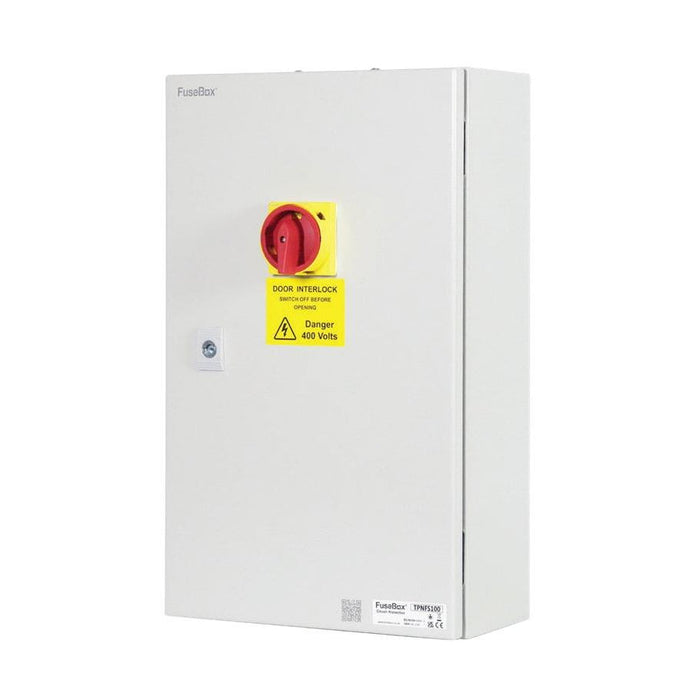

Rated at 63A (AC-23A), this model is supplied with 22×58 gG fuses, delivering reliable mixed-load protection where dependable isolation and overload protection are essential. The highly visible red and yellow rotary handle provides positive ON/OFF indication, while the mechanically interlocked door prevents access when the switch is energised.

For secure maintenance and lock-off procedures, the handle can be padlocked in the OFF position using up to three padlocks. The switch is housed in a robust 1.2mm steel enclosure with a RAL 7035 powder-coated finish and an IP65 rating, ensuring long-term durability in demanding conditions.

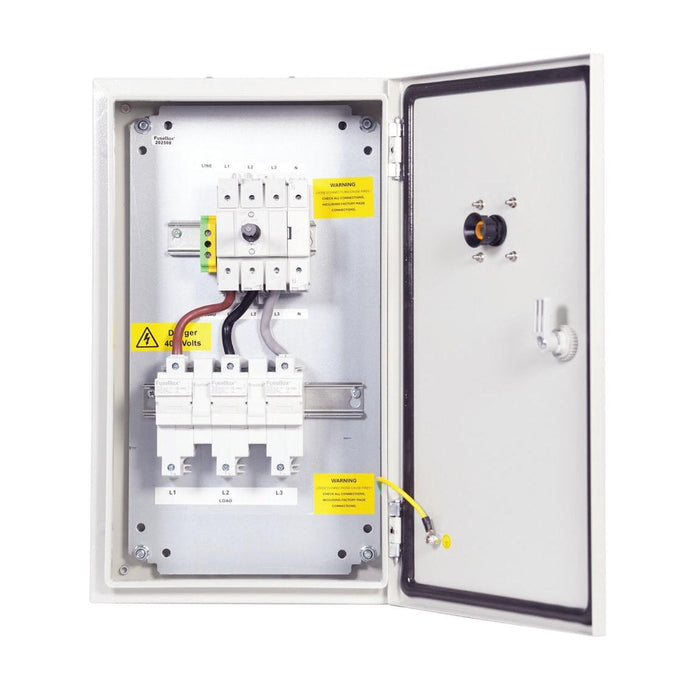

Designed with electricians in mind, the spacious internal layout simplifies cable routing and termination, helping to reduce installation time. The unit is fully compatible with FuseBox main switches and TP&N consumer units.

Key Features & Benefits

• 63A AC-23A rated TP&N fused switch for commercial and industrial applications
• Supplied with 22×58 gG fuses for effective mixed-load protection
• Combines manual isolation with automatic overload protection
• IP65-rated enclosure suitable for harsh and industrial environments
• Heavy-duty 1.2mm steel construction with RAL 7035 grey powder-coat finish
• Red/yellow rotary handle with clear ON/OFF status indication
• Mechanically interlocked door prevents access when switched ON
• Padlockable handle in OFF position (up to 3 padlocks)
• Removable top and bottom gland plates for flexible cable entry
• Spacious internal layout for fast, tidy cable termination
• Wide operating temperature range from -25°C to +55°C
