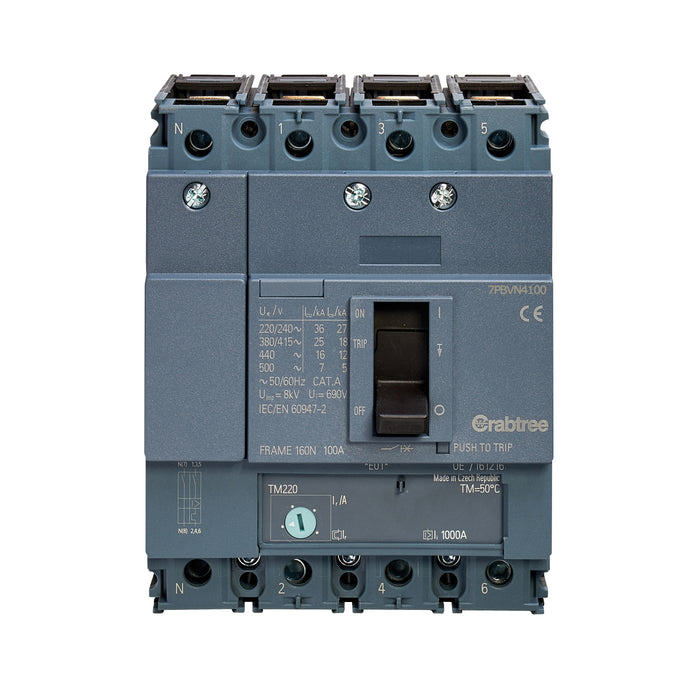

Crabtree 7PBVN4100 Powerstar 100A 25kA 4P MCCB ATFM with Box Terminals

The Crabtree 7PBVN4100 Powerstar MCCB is a high-quality 100A four pole moulded case circuit breaker designed to deliver dependable protection in three phase distribution systems. With a 25kA breaking capacity at 415V AC, it provides reliable defence against overloads and short circuits in compliance with BS EN 60947-2.

Incorporating adjustable thermal and fixed magnetic (ATFM) trip elements, this MCCB allows precise overload protection settings while maintaining consistent magnetic short-circuit response. Supplied complete with box terminals fitted on both line and load sides, it ensures secure and efficient installation. Additional termination accessories are available if required.

This model is specifically intended for use in Crabtree Powerstar VM160 outgoing ways, making it suitable for panel board upgrades, replacements and new installations within compatible systems.

Key Features

• 100A four pole (4P) moulded case circuit breaker
• 25kA breaking capacity at 415V AC
• Compliant with BS EN 60947-2
• Adjustable thermal and fixed magnetic trip elements (ATFM)
• Box terminals fitted on line and load sides
• Additional termination accessories available
• For use in Powerstar VM160 outgoing ways only

Applications

Ideal for commercial and industrial three phase installations requiring reliable circuit protection and coordination within Crabtree Powerstar distribution boards.

Technical Specifications

• Rated Current: 100A
• Number of Poles: 4P
• Breaking Capacity: 25kA at 415V AC
• Trip Type: Adjustable thermal and fixed magnetic
• Standard: BS EN 60947-2
• Terminal Type: Box terminals (line and load)

Data Sheet:
View and download the Crabtree 7PBVN4100 data sheet
