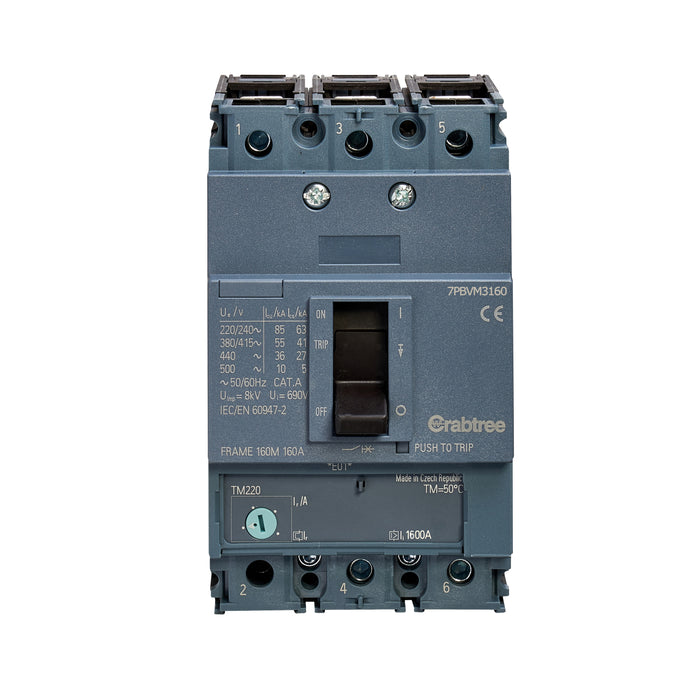

Crabtree 7PBVM3160 Powerstar 160A 55kA 3P MCCB ATFM with Box Terminals

The Crabtree 7PBVM3160 Powerstar MCCB is a high-capacity 160A three pole moulded case circuit breaker engineered for demanding commercial and industrial installations with very high fault levels. Offering an impressive 55kA breaking capacity at 415V AC, it delivers advanced protection against overloads and short circuits in compliance with BS EN 60947-2.

Designed with adjustable thermal and fixed magnetic (ATFM) trip elements, this MCCB allows accurate overload adjustment while ensuring rapid magnetic short-circuit response. The unit is supplied complete with box terminals fitted on both line and load sides, providing secure and efficient cable termination. Additional termination accessories are available where required.

This breaker is specifically intended for use in Crabtree Powerstar VM160 outgoing ways, making it suitable for panel board upgrades, replacements or new installations within compatible Powerstar distribution systems.

Key Features

• 160A three pole (3P) moulded case circuit breaker
• 55kA breaking capacity at 415V AC
• Compliant with BS EN 60947-2
• Adjustable thermal and fixed magnetic trip elements (ATFM)
• Box terminals fitted on line and load sides
• Additional termination accessories available
• Designed for Powerstar VM160 outgoing ways only

Applications

Ideal for heavy-duty three phase commercial and industrial installations where very high fault level protection is required within Crabtree Powerstar assemblies.

Technical Specifications

• Rated Current: 160A
• Number of Poles: 3P
• Breaking Capacity: 55kA at 415V AC
• Trip Type: Adjustable thermal and fixed magnetic
• Standard: BS EN 60947-2
• Terminal Type: Box terminals (line and load)

Data Sheet:
View and download the Crabtree 7PBVM3160 data sheet
