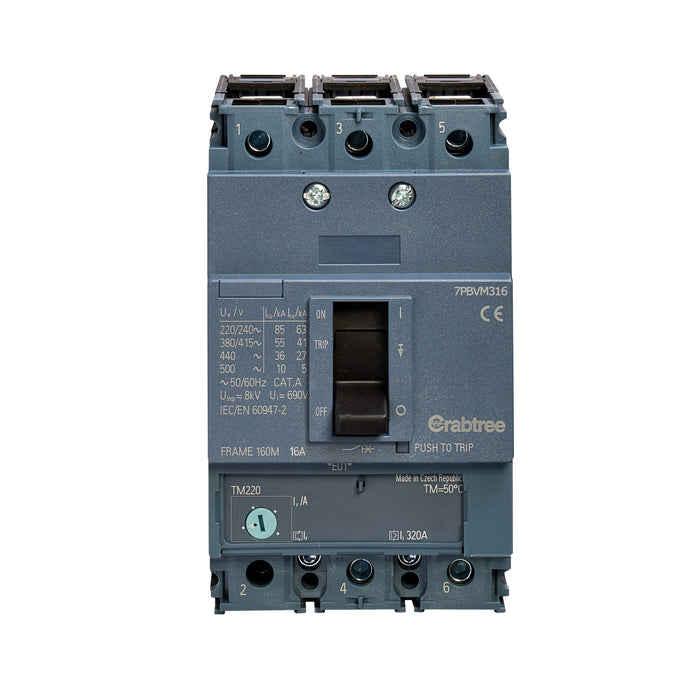

Crabtree 7PBVM316 Powerstar 16A 55kA 3P MCCB ATFM with Box Terminals

The Crabtree 7PBVM316 Powerstar MCCB is a high-specification 16A three pole moulded case circuit breaker designed for commercial and industrial three phase distribution systems where very high fault levels are present. With an impressive 55kA breaking capacity at 415V AC, it provides exceptional protection against overloads and short circuits in accordance with BS EN 60947-2.

Featuring adjustable thermal and fixed magnetic (ATFM) trip elements, this MCCB allows accurate overload setting adjustment while ensuring rapid magnetic short-circuit response. Supplied complete with box terminals fitted on both line and load sides, it guarantees secure and efficient cable termination. Additional termination accessories are available if required.

This breaker is specifically designed for use in Crabtree Powerstar VM160 outgoing ways, making it ideal for system upgrades, panel board expansions or direct replacements within compatible Powerstar distribution assemblies.

Key Features

• 16A three pole (3P) moulded case circuit breaker
• 55kA breaking capacity at 415V AC
• Compliant with BS EN 60947-2
• Adjustable thermal and fixed magnetic trip elements (ATFM)
• Box terminals fitted on line and load sides
• Additional termination accessories available
• Designed for Powerstar VM160 outgoing ways only

Applications

Suitable for demanding three phase commercial and industrial installations requiring very high fault level protection within Crabtree Powerstar VM160 panel boards.

Technical Specifications

• Rated Current: 16A
• Number of Poles: 3P
• Breaking Capacity: 55kA at 415V AC
• Trip Type: Adjustable thermal and fixed magnetic
• Standard: BS EN 60947-2
• Terminal Type: Box terminals (line and load)

Data Sheet:
View and download the Crabtree 7PBVM316 data sheet
