Crabtree 7PBVF316 Powerstar 16A 25kA 3P MCCB FTFM with Box Terminals

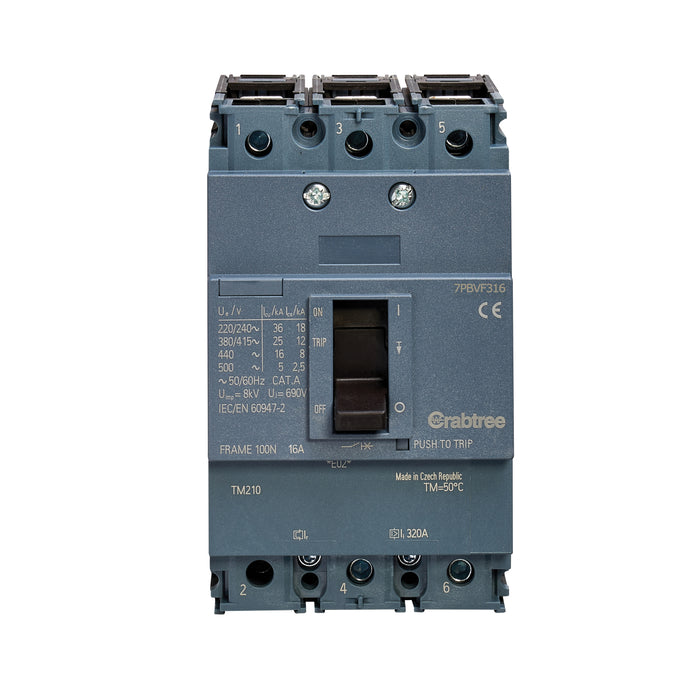

The Crabtree 7PBVF316 Powerstar MCCB is a dependable 16A three pole moulded case circuit breaker designed for commercial and industrial three phase distribution systems. With a 25kA breaking capacity at 415V AC, it provides reliable protection against overloads and short circuits in accordance with BS EN 60947-2.

Equipped with fixed thermal and magnetic (FTFM) trip elements, this MCCB delivers consistent, factory-set protection characteristics for straightforward installation and coordination. The unit is supplied complete with box terminals fitted on both line and load sides, ensuring secure and efficient cable termination. Additional termination accessories are available if required.

This breaker is specifically intended for use in Crabtree Powerstar VM160 outgoing ways, making it suitable for system upgrades, replacements or new installations within compatible Powerstar panel boards.

Key Features

• 16A three pole (3P) moulded case circuit breaker
• 25kA breaking capacity at 415V AC
• Compliant with BS EN 60947-2
• Fixed thermal and magnetic trip elements (FTFM)
• Box terminals fitted on line and load sides
• Additional termination accessories available
• Designed for Powerstar VM160 outgoing ways only

Applications

Ideal for three phase commercial and industrial installations requiring robust overcurrent and short-circuit protection within Crabtree Powerstar VM160 distribution systems.

Technical Specifications

• Rated Current: 16A
• Number of Poles: 3P
• Breaking Capacity: 25kA at 415V AC
• Trip Type: Fixed thermal and magnetic
• Standard: BS EN 60947-2
• Terminal Type: Box terminals (line and load)

Data Sheet:
View and download the Crabtree 7PBVF316 data sheet
