Crabtree 701C/103 Polestar Compact 10A Type A RCBO – 1P+N

Product Overview

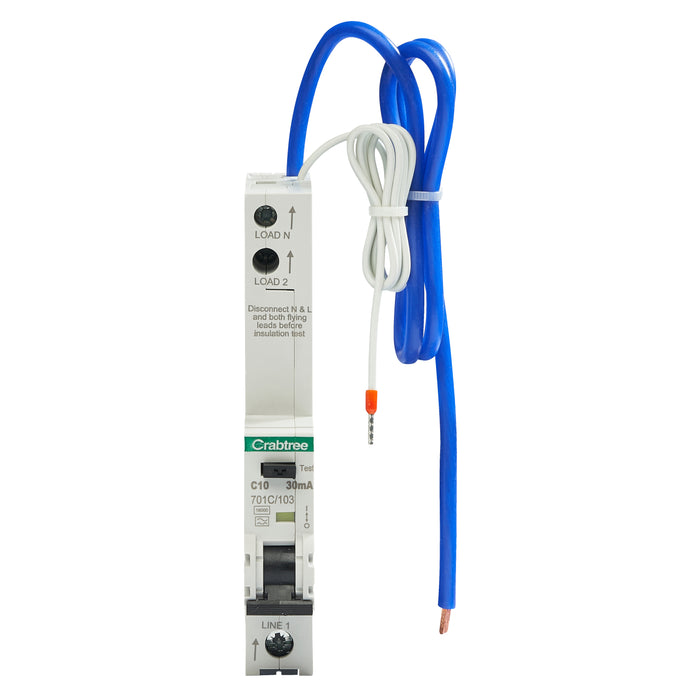

The Crabtree 701C/103 Polestar Compact RCBO delivers dependable combined overcurrent and residual current protection in a compact single-module format. Rated at 10A with a C curve characteristic, this Type A RCBO is designed for use within Crabtree Polestar Compact distribution boards, providing effective protection against overloads, short circuits and earth leakage faults.

Key Features

• 10A C curve RCBO combining MCB and RCD protection in one device
• 30mA Type A sensitivity for detection of AC and pulsating DC earth leakage currents
• High 16kA short-circuit breaking capacity for commercial and industrial installations
• Single-module 1P+N design to maximise usable space within the distribution board
• Supplied with 600mm neutral and earth flying leads for efficient installation
• Compatible with Crabtree Polestar Compact distribution boards

Technical Specification

• Rated Current: 10A
• Tripping Characteristic: C Curve
• Residual Operating Current: 30mA
• Breaking Capacity: 16kA
• Poles: 1P+N
• Device Type: Type A RCBO
• Module Width: 1 Module

Documentation

Data Sheet: Click here to view the manufacturer’s data sheet
