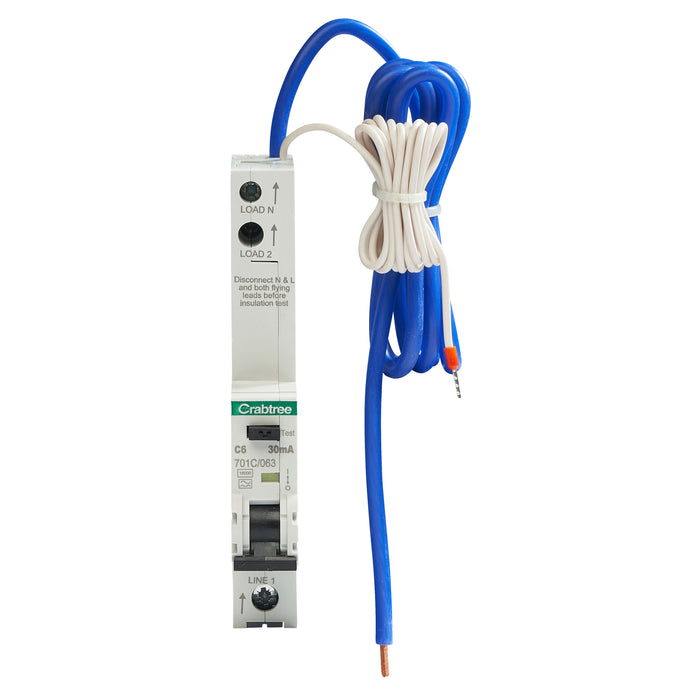

Crabtree 701C/063/LT Polestar Compact 6A Type A RCBO – Long Tail

Product Overview

The Crabtree 701C/063/LT Polestar Compact RCBO provides reliable combined overcurrent and residual current protection in a compact single-module format, supplied with extended 1200mm neutral and earth flying leads. Rated at 6A with a C curve characteristic, this Type A RCBO is ideal for installations where longer tails are required for flexible wiring within Crabtree Polestar Compact distribution boards.

Key Features

• 6A C curve RCBO combining MCB and RCD protection in one device
• 30mA Type A sensitivity for protection against AC and pulsating DC earth leakage currents
• High 16kA short-circuit breaking capacity for commercial applications
• Long tail version supplied with 1200mm neutral and earth flying leads
• Single-module 1P+N design to maximise usable space within the distribution board
• Designed for use in Crabtree Polestar Compact distribution boards

Technical Specification

• Rated Current: 6A
• Tripping Characteristic: C Curve
• Residual Operating Current: 30mA
• Breaking Capacity: 16kA
• Poles: 1P+N
• Device Type: Type A RCBO
• Module Width: 1 Module
• Neutral & Earth Tail Length: 1200mm

Documentation

Data Sheet: Click here to view the manufacturer’s data sheet
