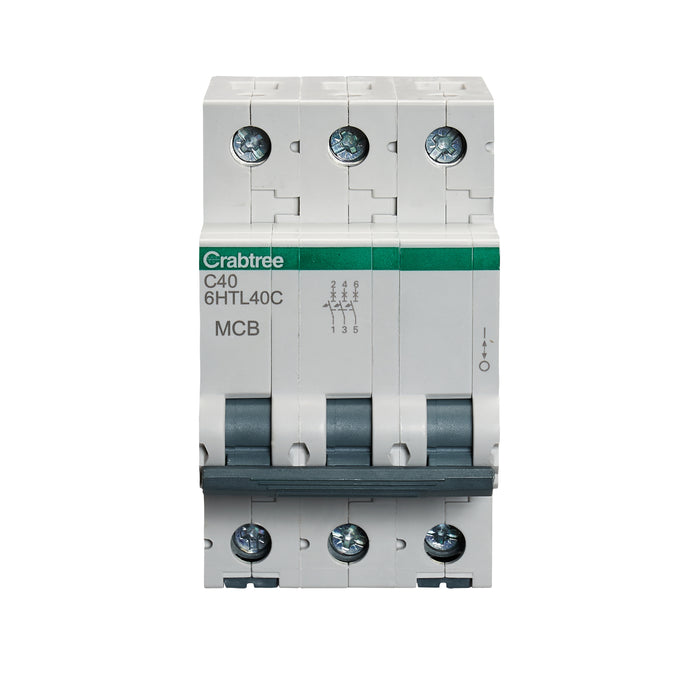

Crabtree 6HTL40C Loadstar 40A Triple Pole Type C 10kA MCB

Product Description

The Crabtree 6HTL40C Loadstar 40A Type C Triple Pole Miniature Circuit Breaker is designed to deliver dependable protection against overloads and short circuits within three-phase electrical installations. Engineered for use with Crabtree Loadstar distribution boards, this TP MCB ensures safe and simultaneous isolation of all three phases for enhanced system safety and reliability.

Featuring a Type C trip characteristic (5–10 In), this circuit breaker is well suited to applications with moderate inrush currents, including motors, control gear, and commercial or light industrial three-phase systems. It provides a robust 10kA breaking capacity to BS EN 60898-1, with enhanced performance up to 15kA to BS EN 60947-2.

Key Features

• 40A rated current for three-phase circuit protection
• Type C trip curve (5–10 In) for moderate inrush current applications
• Triple pole MCB for simultaneous isolation of all three phases
• 10kA breaking capacity to BS EN 60898-1 at 240V AC
• 15kA breaking capacity to BS EN 60947-2
• Energy limiting Class 3 to minimise let-through energy
• Compatible with Crabtree Loadstar distribution boards

Standards & Compliance

• BS EN 60898-1
• BS EN 60947-2

Technical Documentation

Data Sheet: Click here to view the data sheet
