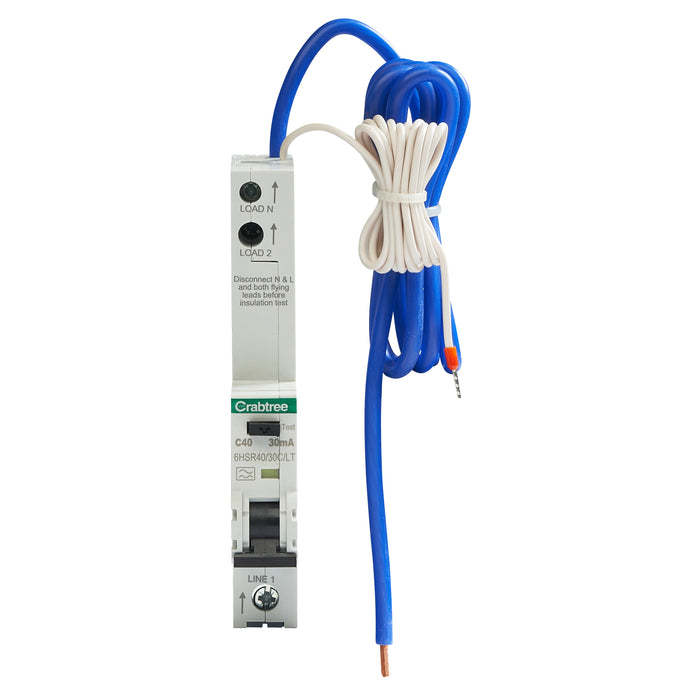

Crabtree 6HSR40/30C/LT Loadstar 40A C Curve 30mA Type A RCBO – Long Tail

The Crabtree 6HSR40/30C/LT Loadstar RCBO is a compact, single-module circuit protection device designed for higher-current applications where extended connection leads are required. By combining MCB and RCD protection in one unit, it provides effective defence against overloads, short circuits, and earth leakage faults.

Featuring a 40A C curve tripping characteristic and 30mA Type A residual current protection, this RCBO is well suited to circuits with higher inrush currents, such as those supplying motors, commercial equipment, or inductive loads. A robust 10kA breaking capacity ensures dependable fault protection in both domestic and commercial electrical installations.

Key Features

• 40A C Curve MCB with 30mA Type A RCD protection
• Single-module width RCBO for compact installations
• 10kA short-circuit breaking capacity
• 1P+N configuration with switched neutral
• Uni-directional RCBO design
• Supplied with extended 1200mm neutral and earth tails
• Fully compatible with Crabtree Loadstar distribution boards

Applications

Ideal for higher-load final circuit protection where additional tail length is required, this RCBO is suitable for commercial installations, larger socket circuits, and equipment with increased inrush characteristics.

Technical Documentation

View the Manufacturer’s Data Sheet
