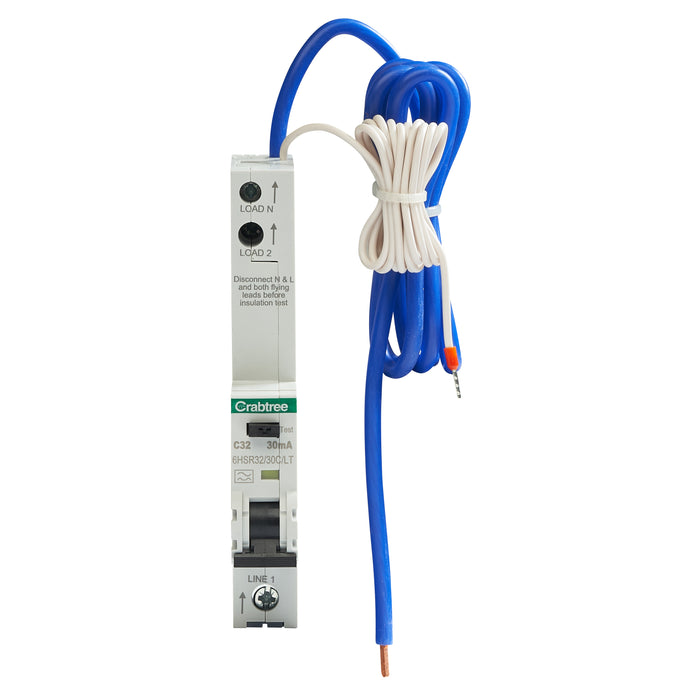

Crabtree 6HSR32/30C/LT Loadstar 1 Module 32A C Curve 30mA 10kA 1P+N Type A RCBO Long Tail
Crabtree 6HSR32/30C/LT Loadstar 32A C Curve 30mA Type A RCBO – Long Tail
The Crabtree 6HSR32/30C/LT Loadstar RCBO is a compact, single-module circuit protection device engineered to deliver combined overcurrent and residual current protection with enhanced installation flexibility. This long tail variant is supplied with extended connection leads, allowing easier routing within larger or more complex distribution boards.
Rated at 32A with a C curve tripping characteristic and 30mA Type A residual current protection, this RCBO is well suited to socket-outlet circuits and higher-load final circuits with moderate inrush currents. A robust 10kA breaking capacity ensures dependable fault protection in both domestic and commercial electrical installations.
Key Features
- 32A C Curve MCB with 30mA Type A RCD protection
- Single-module width RCBO for compact installations
- 10kA short-circuit breaking capacity
- 1P+N configuration with switched neutral
- Uni-directional RCBO design
- Supplied with extended 1200mm neutral and earth tails
- Fully compatible with Crabtree Loadstar distribution boards
Applications
Ideal for higher-current final circuit protection where additional tail length is required, this RCBO is suitable for socket circuits, commercial installations, and equipment with moderate inrush characteristics.
