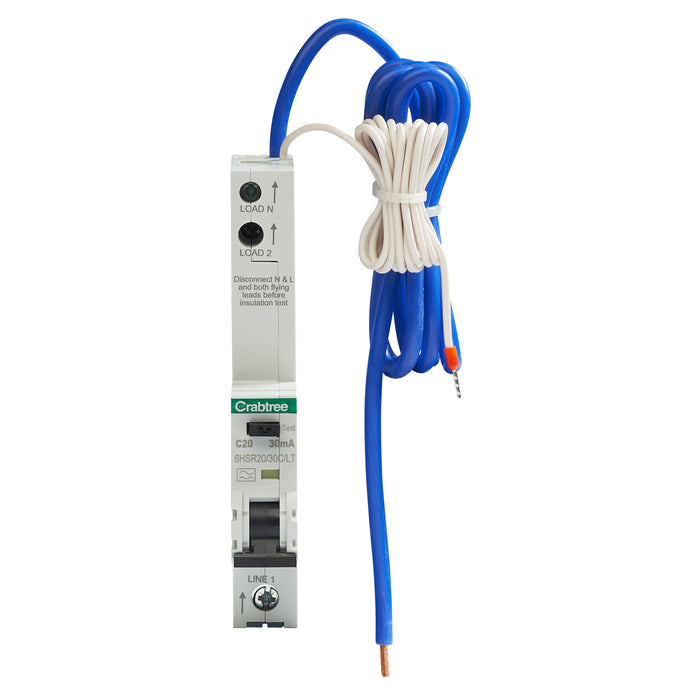

Crabtree 6HSR20/30C/LT Loadstar 20A C Curve 30mA Type A RCBO – Long Tail

The Crabtree 6HSR20/30C/LT Loadstar RCBO is a compact, single-module circuit protection device that delivers combined overcurrent and residual current protection with added installation flexibility. This long tail variant is supplied with extended connection leads, making it ideal for distribution boards where additional wiring length is required.

Rated at 20A with a C curve tripping characteristic and 30mA Type A residual current protection, this RCBO is well suited to circuits with moderate inrush currents, such as those supplying motors, control gear, or inductive loads. A robust 10kA breaking capacity ensures reliable fault protection in both domestic and commercial installations.

Key Features

• 20A C Curve MCB with 30mA Type A RCD protection
• Single-module width RCBO for compact installations
• 10kA short-circuit breaking capacity
• 1P+N configuration with switched neutral
• Uni-directional RCBO design
• Supplied with extended 1200mm neutral and earth tails
• Fully compatible with Crabtree Loadstar distribution boards

Applications

Ideal for final circuit protection where additional tail length is required, this RCBO is suitable for soc
