Crabtree 6HSR10/30C Loadstar 1 Module 10A C Curve 30mA 10kA 1P+N Type A RCBO
Crabtree 6HSR10/30C Loadstar 10A C Curve 30mA 10kA Type A RCBO

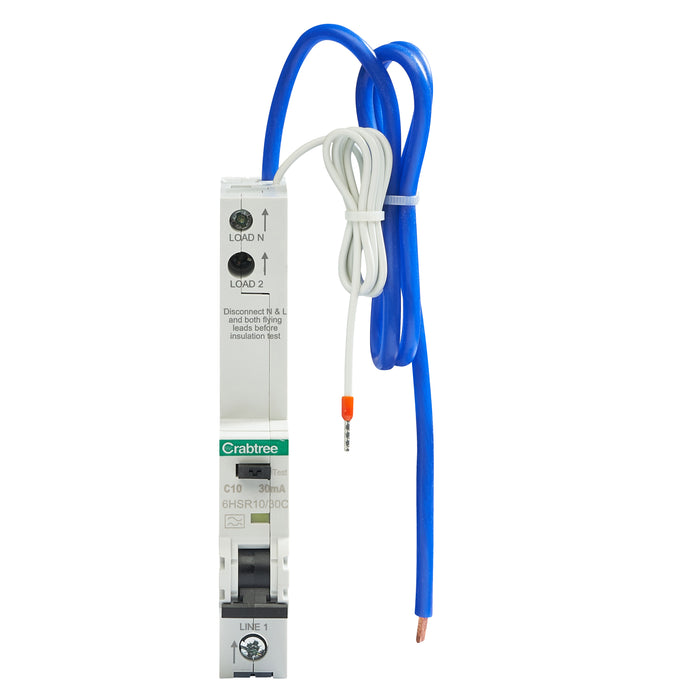

The Crabtree 6HSR10/30C Loadstar RCBO is a compact, single-module protection device that combines MCB and RCD functionality into one unit. It provides reliable protection against overloads, short circuits, and earth leakage faults, helping to improve safety across modern electrical installations.
Featuring a 10A C curve tripping characteristic and 30mA Type A residual current protection, this RCBO is suitable for circuits with moderate inrush currents, such as those supplying small motors, transformers, or control equipment. A 10kA breaking capacity ensures robust fault protection in both domestic and commercial environments.
Key Features
- 10A C Curve MCB with 30mA Type A RCD protection
- Single-module width RCBO for compact installations
- 10kA short-circuit breaking capacity
- 1P+N configuration with switched neutral
- Uni-directional RCBO design
- Supplied with 600mm neutral and earth tails
- Compatible with Crabtree Loadstar distribution boards
Applications
Ideal for final circuit protection where both earth leakage and overcurrent protection are required, particularly on circuits with higher inrush demands than B curve devices.
