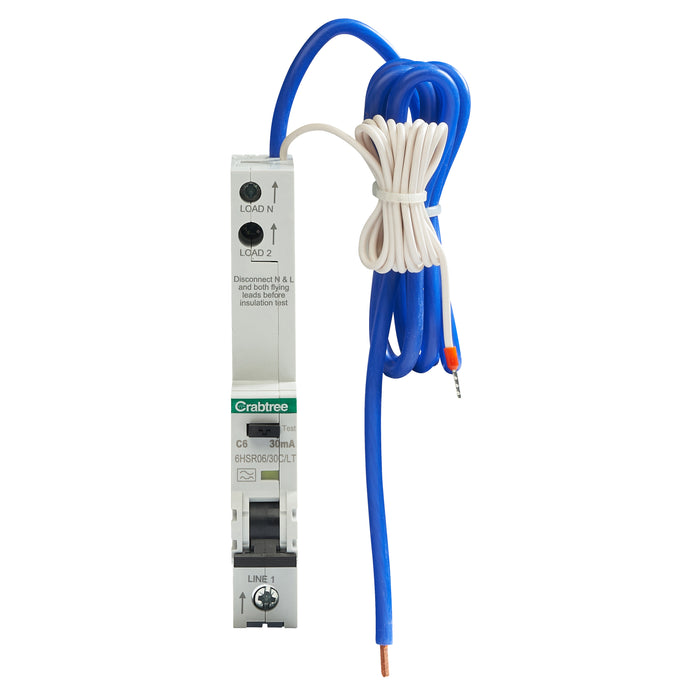

Crabtree 6HSR06/30C/LT Loadstar 6A C Curve 30mA Type A RCBO – Long Tail

The Crabtree 6HSR06/30C/LT Loadstar RCBO is a compact, single-module circuit protection device that combines MCB and RCD protection in one unit. Designed with extended connection leads, this long tail variant offers greater installation flexibility while delivering dependable protection against overloads, short circuits, and earth leakage faults.

Rated at 6A with a C curve tripping characteristic and 30mA Type A residual current protection, this RCBO is suitable for circuits with moderate inrush currents, such as control circuits or small inductive loads. A 10kA breaking capacity ensures robust fault protection in both domestic and commercial installations.

Key Features

• 6A C Curve MCB with 30mA Type A RCD protection
• Single-module width RCBO for compact installations
• 10kA short-circuit breaking capacity
• 1P+N configuration with switched neutral
• Uni-directional RCBO design
• Supplied with extended 1200mm neutral and earth tails
• Compatible with Crabtree Loadstar distribution boards

Applications

Ideal for installations where additional wiring length is required, this RCBO is well suited to lighting, control, and specialist circuits that benefit from combined earth leakage and overcurrent protection.

Technical Documentation

View the Manufacturer’s Data Sheet
