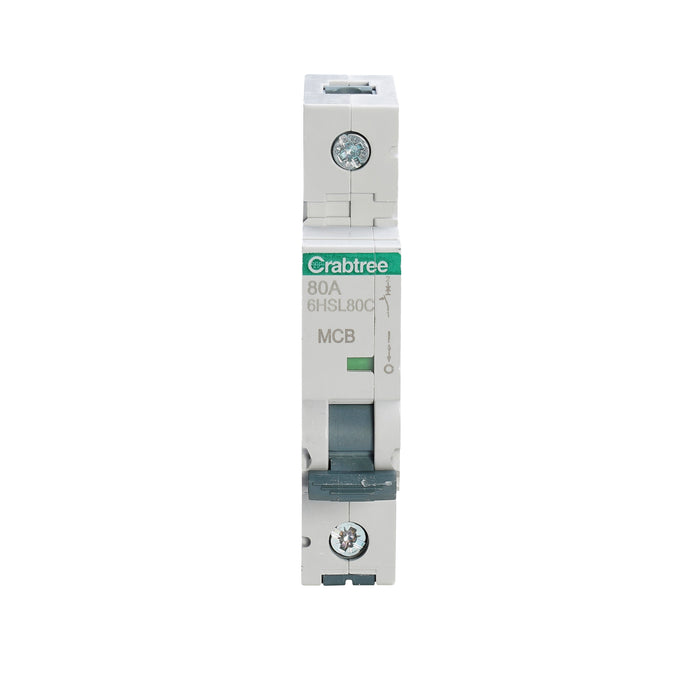

Crabtree 6HSL80C Loadstar 80A Single Pole Type C 10kA MCB

Product Description

The Crabtree 6HSL80C Loadstar 80A Type C Miniature Circuit Breaker is a high-capacity protective device designed for use in demanding electrical installations. This MCB is specifically intended for use within Crabtree Loadstar 250A distribution boards only, ensuring safe and reliable operation in higher-load applications.

Featuring a Type C trip characteristic (5–10 In), this breaker is ideal for circuits with moderate inrush currents, such as those supplying motors, transformers, and other inductive loads. It provides a robust 10kA breaking capacity to BS EN 60898-1, with enhanced performance up to 15kA to BS EN 60947-2.

Key Features

• 80A rated current for high-load circuit protection
• Designed for use in Crabtree Loadstar 250A distribution boards only
• Type C trip curve (5–10 In) for moderate inrush current applications
• Single pole MCB for phase protection
• 10kA breaking capacity to BS EN 60898-1 at 240V AC
• 15kA breaking capacity to BS EN 60947-2
• Energy limiting Class 3 to minimise let-through energy

Standards & Compliance

• BS EN 60898-1
• BS EN 60947-2

Technical Documentation

Data Sheet: Click here to view the data sheet
