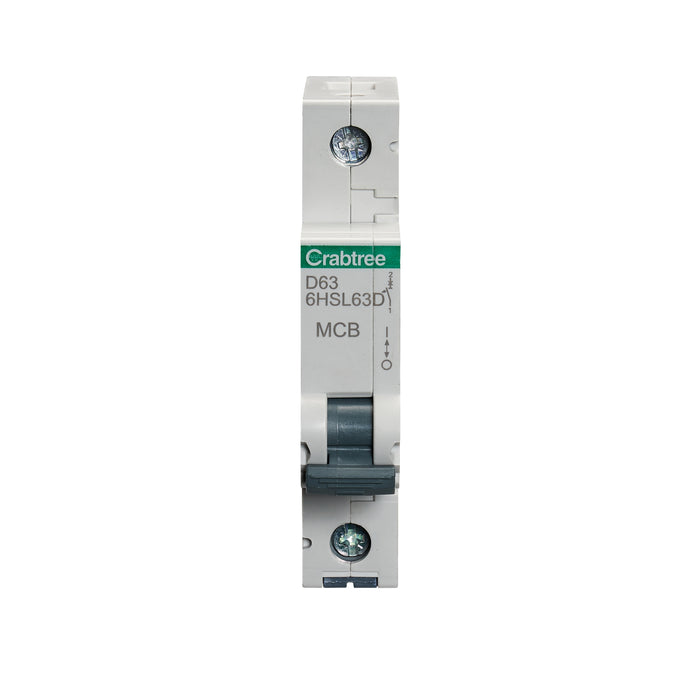

Crabtree 6HSL63D Loadstar 63A Single Pole D Curve 10kA MCB
Crabtree 6HSL63D Loadstar 63A Single Pole Type D 10kA MCB
Product Description
The Crabtree 6HSL63D Loadstar 63A Type D Miniature Circuit Breaker is engineered for high-load electrical circuits requiring protection against overloads and short circuits in environments with very high inrush currents. Designed for use within Crabtree Loadstar distribution boards, this single pole MCB ensures fast and reliable circuit isolation in demanding industrial and commercial installations.
Featuring a Type D trip characteristic (10–20 In), this breaker is ideally suited to applications such as large motors, transformers, welding equipment, and other heavy inductive loads. It provides a robust 10kA breaking capacity to BS EN 60898-1, with enhanced performance up to 15kA to BS EN 60947-2.
Key Features
- 63A rated current for high-load, high inrush current circuit protection
- Type D trip curve (10–20 In) for very high inrush current applications
- Single pole MCB for phase protection
- 10kA breaking capacity to BS EN 60898-1 at 240V AC
- 15kA breaking capacity to BS EN 60947-2
- Energy limiting Class 3 to reduce let-through energy
- Compatible with Crabtree Loadstar distribution boards
Standards & Compliance
- BS EN 60898-1
- BS EN 60947-2
Technical Documentation
Data Sheet: Click here to view the data sheet
