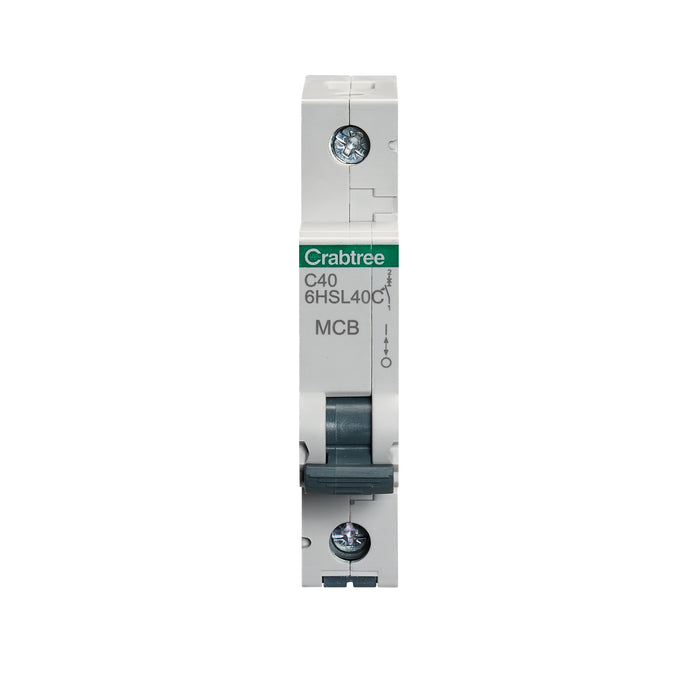

Crabtree 6HSL40C Loadstar 40A Single Pole C Curve 10kA MCB
Crabtree 6HSL40C Loadstar 40A Single Pole Type C 10kA MCB
Product Description
The Crabtree 6HSL40C Loadstar 40A Type C Miniature Circuit Breaker provides robust and reliable protection against overloads and short circuits in electrical installations where moderate inrush currents are present. Designed for use with Crabtree Loadstar distribution boards, this single pole MCB ensures fast and safe circuit disconnection during fault conditions.
Featuring a Type C trip characteristic (5–10 In), this breaker is ideal for applications such as motors, transformers, fluorescent lighting, and other inductive loads. It delivers a strong 10kA breaking capacity to BS EN 60898-1, with enhanced performance up to 15kA to BS EN 60947-2.
Key Features
- 40A rated current for higher-load circuit protection
- Type C trip curve (5–10 In) for moderate inrush current applications
- Single pole MCB for phase protection
- 10kA breaking capacity to BS EN 60898-1 at 240V AC
- 15kA breaking capacity to BS EN 60947-2
- Energy limiting Class 3 to minimise let-through energy
- Fully compatible with Crabtree Loadstar distribution boards
Standards & Compliance
- BS EN 60898-1
- BS EN 60947-2
Technical Documentation
Data Sheet: Click here to view the data sheet
