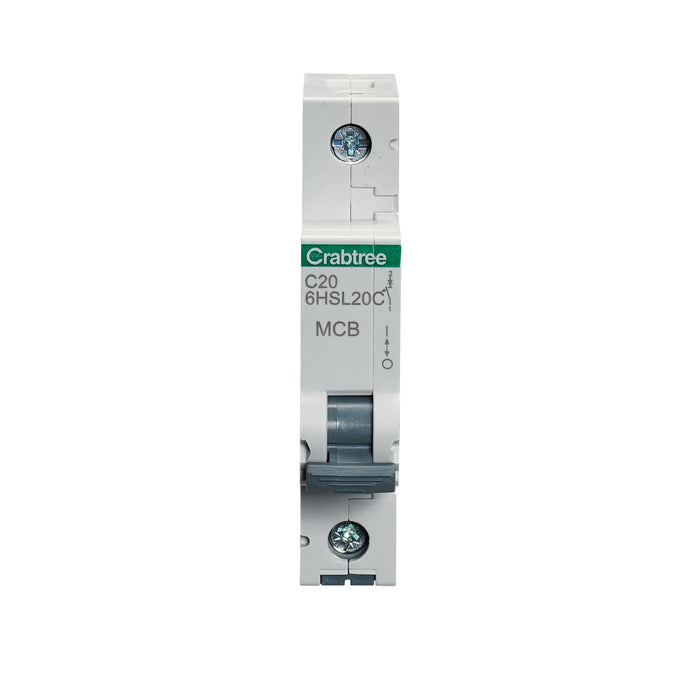

Crabtree 6HSL20C Loadstar 20A Single Pole Type C 10kA MCB

Product Description

The Crabtree 6HSL20C Loadstar 20A Type C Miniature Circuit Breaker offers reliable protection against overloads and short circuits in electrical installations where moderate inrush currents are present. Designed for use with Crabtree Loadstar distribution boards, this single pole MCB ensures safe and efficient circuit isolation under fault conditions.

Featuring a Type C trip characteristic (5–10 In), this breaker is ideal for applications such as motors, fluorescent lighting, control gear, and inductive loads. It provides a robust 10kA breaking capacity to BS EN 60898-1, with enhanced performance up to 15kA to BS EN 60947-2.

Key Features

• 20A rated current for dependable circuit protection
• Type C trip curve (5–10 In) for moderate inrush current applications
• Single pole MCB for phase protection
• 10kA breaking capacity to BS EN 60898-1 at 240V AC
• 15kA breaking capacity to BS EN 60947-2
• Energy limiting Class 3 to minimise let-through energy
• Compatible with Crabtree Loadstar distribution boards

Standards & Compliance

• BS EN 60898-1
• BS EN 60947-2

Technical Documentation

Data Sheet:
