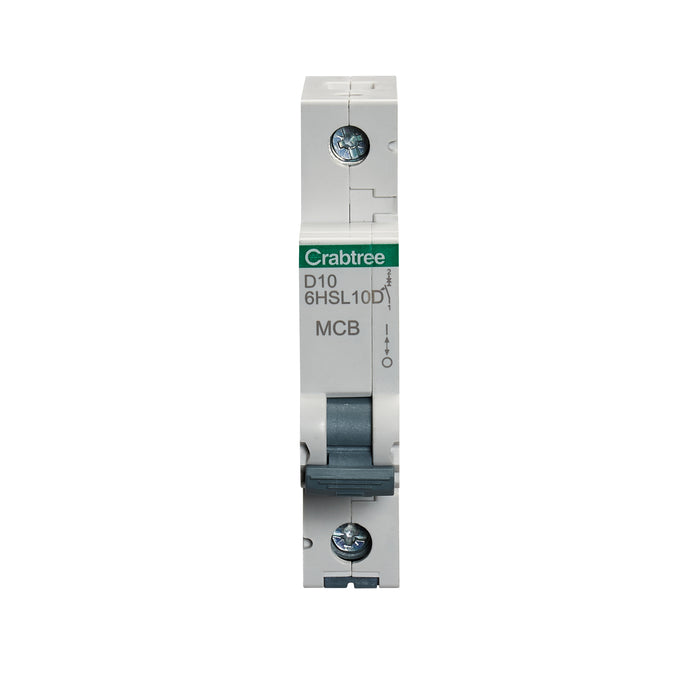

Crabtree 6HSL10D Loadstar 10A Single Pole D Curve 10kA MCB
Crabtree 6HSL10D Loadstar 10A Single Pole Type D 10kA MCB
Product Description
The Crabtree 6HSL10D Loadstar 10A Type D Miniature Circuit Breaker provides robust protection against overloads and short circuits in electrical installations with very high inrush currents. Designed for use with Crabtree Loadstar distribution boards, this single pole MCB ensures safe and reliable circuit isolation in demanding commercial and industrial environments.
With a Type D trip characteristic (10–20 In), this breaker is ideal for circuits supplying equipment such as motors, transformers, and other heavy inductive loads where high start-up currents are expected. It delivers a strong 10kA breaking capacity to BS EN 60898-1, with enhanced performance up to 15kA to BS EN 60947-2.
Key Features
- 10A rated current for high inrush current circuit protection
- Type D trip curve (10–20 In) for very high inrush current applications
- Single pole MCB for phase protection
- 10kA breaking capacity to BS EN 60898-1 at 240V AC
- 15kA breaking capacity to BS EN 60947-2
- Energy limiting Class 3 to minimise let-through energy
- Compatible with Crabtree Loadstar distribution boards
Standards & Compliance
- BS EN 60898-1
- BS EN 60947-2
Technical Documentation
Data Sheet: Click here to view the data sheet
