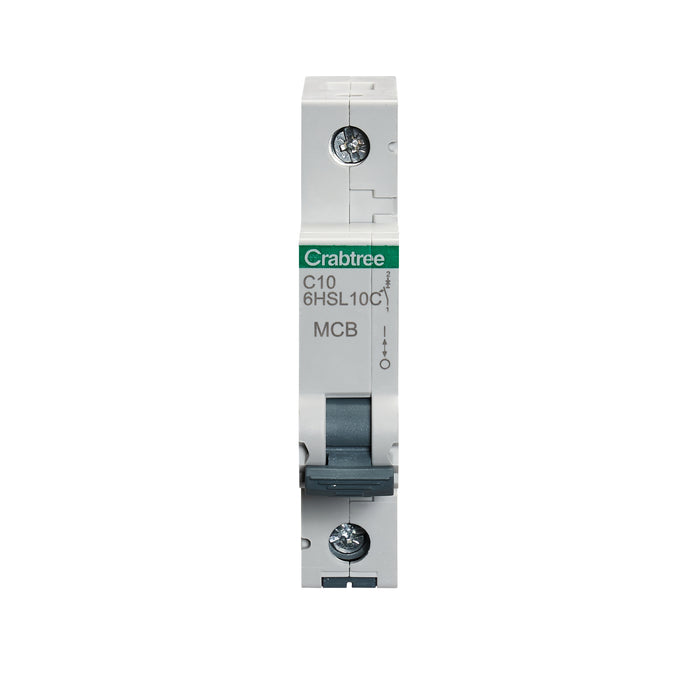

Crabtree 6HSL10C Loadstar 10A Single Pole C Curve 10kA MCB
Crabtree 6HSL10C Loadstar 10A Single Pole Type C 10kA MCB
Product Description
The Crabtree 6HSL10C Loadstar 10A Type C Miniature Circuit Breaker is designed to deliver reliable protection against overloads and short circuits in electrical installations where moderate inrush currents are present. Built for use within Crabtree Loadstar distribution boards, this single pole MCB ensures safe and effective circuit isolation during fault conditions.
Featuring a Type C trip characteristic (5–10 In), this breaker is ideally suited to applications such as fluorescent lighting, control gear, transformers, and small motors. It provides a robust 10kA breaking capacity to BS EN 60898-1, with enhanced performance up to 15kA to BS EN 60947-2.
Key Features
- 10A rated current for dependable circuit protection
- Type C trip curve (5–10 In) for moderate inrush current applications
- Single pole MCB for phase protection
- 10kA breaking capacity to BS EN 60898-1 at 240V AC
- 15kA breaking capacity to BS EN 60947-2
- Energy limiting Class 3 to minimise let-through energy
- Compatible with Crabtree Loadstar distribution boards
Standards & Compliance
- BS EN 60898-1
- BS EN 60947-2
Technical Documentation
Data Sheet: Click here to view the data sheet
