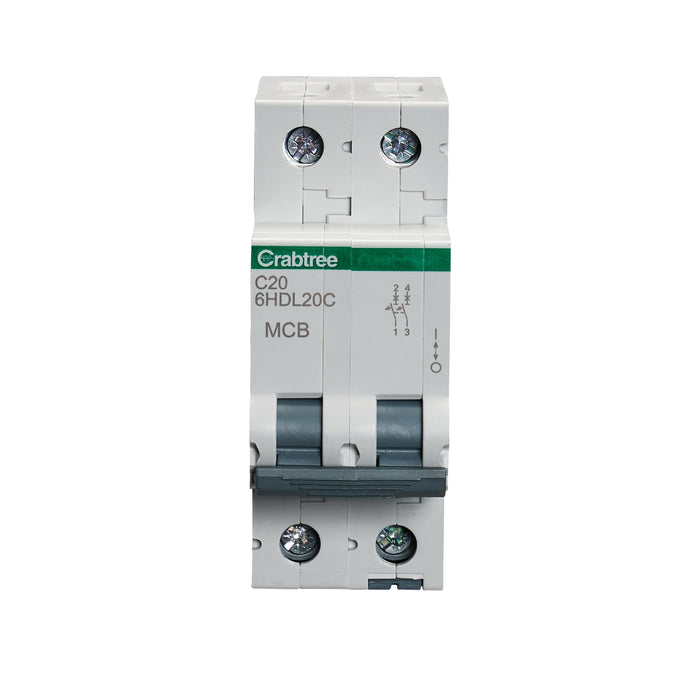

Crabtree 6HDL20C Loadstar 20A Double Pole C Curve 10kA MCB
Crabtree 6HDL20C Loadstar 20A Double Pole Type C 10kA MCB
Product Description
The Crabtree 6HDL20C Loadstar 20A Type C Double Pole Miniature Circuit Breaker delivers reliable protection against overloads and short circuits while providing full isolation of both live and neutral conductors. Designed for use with Crabtree Loadstar distribution boards, this DP MCB is ideal for commercial and light industrial installations where enhanced safety and dependable performance are required.
Featuring a Type C trip characteristic (5–10 In), this breaker is well suited to circuits supplying motors, transformers, control gear, and other inductive loads with moderate inrush currents. It offers a robust 10kA breaking capacity to BS EN 60898-1, with enhanced performance up to 15kA to BS EN 60947-2.
Key Features
- 20A rated current for dependable circuit protection
- Type C trip curve (5–10 In) for moderate inrush current applications
- Double pole MCB for full live and neutral isolation
- 10kA breaking capacity to BS EN 60898-1 at 240V AC
- 15kA breaking capacity to BS EN 60947-2
- Energy limiting Class 3 to minimise let-through energy
- Compatible with Crabtree Loadstar distribution boards
Standards & Compliance
- BS EN 60898-1
- BS EN 60947-2
Technical Documentation
Data Sheet: Click here to view the data sheet
