Crabtree 196303N Fusestar 630A 3P+N Fuse Combination Unit

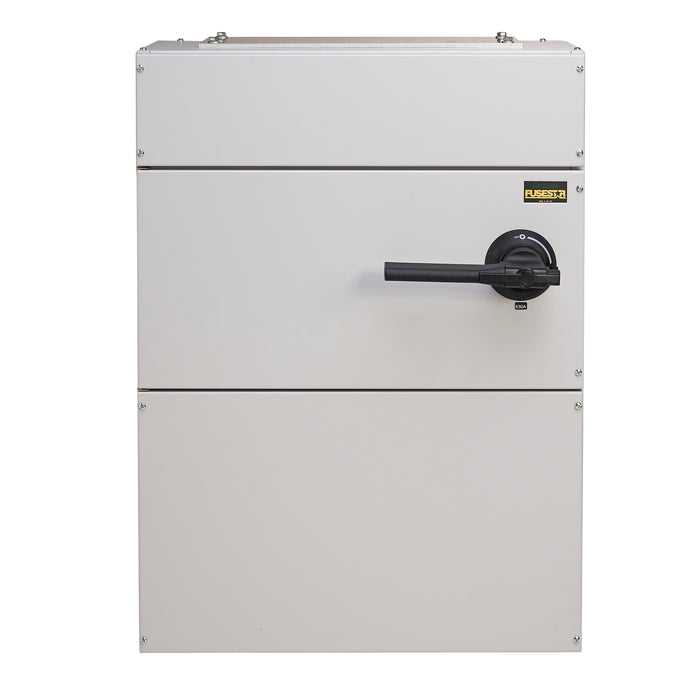

Crabtree 196303N 630A 3P+N Fuse Combination Unit
Product Description
The Crabtree 196303N is a 630A 3P+N fuse combination unit supplied without fuses (switch only). Designed for very high-current commercial and industrial power distribution, it provides a robust and compliant three-phase isolation solution while allowing installers to specify suitable BS88 fuse links separately.
Key Features
- Supplied without fuses (switch only)
- 630A 3P+N fuse combination unit for very high-current isolation
- IP4X rated steel enclosure for enhanced operational safety
- Operating handle can be padlocked for secure lock-off procedures
- Front door reversible with 180° opening for ease of access
- Accommodates cable spreading room up to 630mm² 4 core (one end only)
- For a 4 core cable at both ends, an additional cable spreader (19800CSB) is required
- RAL 7035 grey powder coat finish
- Designed and manufactured in the UK to BS EN 60947-3
Dimensions
Height: 900mm
Width: 640mm
Depth: 293mm
Technical Information
Engineered for the most demanding electrical environments, the 196303N provides a secure and durable isolation point within a heavy-duty IP4X steel enclosure. Its large internal capacity, padlockable operating handle, and wide-opening reversible door support efficient installation and long-term maintenance in high-load distribution systems.
