Product Description

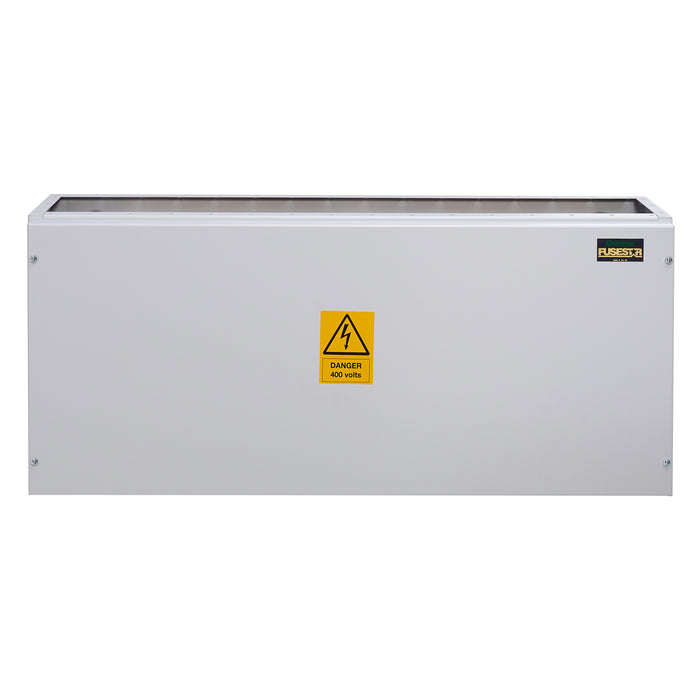

The Crabtree 1949BB is a 16 module, 400A 3P+N busbar chamber designed for use with Crabtree Fusestar fuse combination units rated from 20A to 400A. It provides a robust and efficient solution for distributing supply and load within commercial and industrial electrical installations.

Key Features

• Designed for distributing supply and load between Fusestar fuse combination units (20A–400A)
• 16 module capacity for flexible system configuration
• Pre-fitted with four 250A / 400A terminals featuring M8 fixing holes
• Includes blank filler plates: 2 × 4 module, 2 × 2 module, and 2 × 1 module
• High short-circuit rating of 31.5kA

Dimensions

Height: 368mm
Width: 840mm
Depth: 190mm

Technical Information

Manufactured to meet the demands of high-current distribution, the 1949BB busbar chamber integrates seamlessly with the Fusestar system. Its pre-configured terminals and supplied blanking plates allow for safe, tidy, and adaptable installations while maintaining compliance and long-term reliability.

Downloads

Data Sheet:
Click here to view the data sheet
