Crabtree 191601N Fusestar 160A 1P+N Fuse Combination Unit
by Crabtree
SKU 191601N
Availability:
Dispatch in 2-5 Days
Original price
£519.17
-
Original price
£519.17
Original price
£519.17
Inc VAT
£432.64
Exc VAT
£519.17
-
£519.17
Current price
£432.64
£432.64
-
£432.64
Current price
£432.64

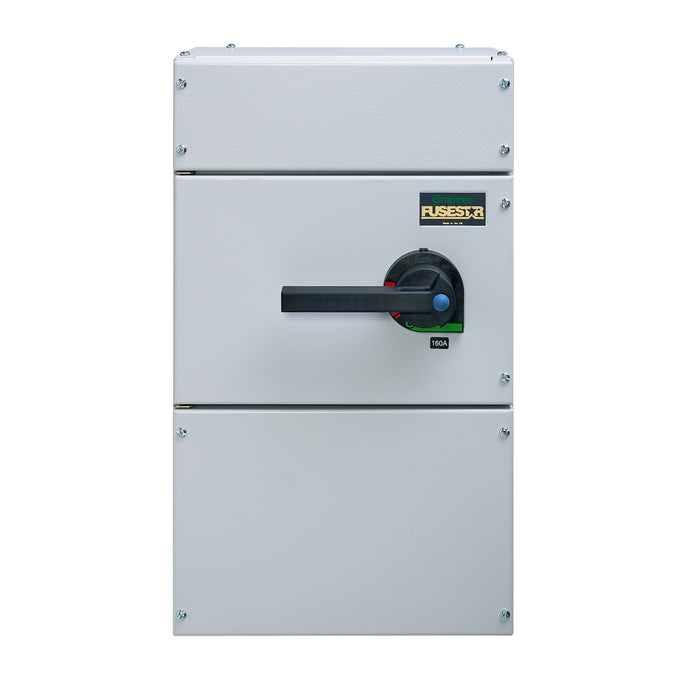

Crabtree 191601N 160A 1P+N Fuse Combination Unit
Product Description
The Crabtree 191601N is a 160A 1P+N fuse combination unit supplied without fuses (switch only). It provides a robust isolation point for commercial and industrial installations, allowing installers to specify the appropriate BS88 fuse links separately where required.
Key Features
- Supplied without fuses (switch only)
- 160A 1P+N fuse combination unit for dependable isolation and protection configuration
- IP4X rated steel enclosure for enhanced safety
- Operating handle can be padlocked for secure lock-off
- Front door reversible with 180° opening for easy access
- Accommodates cable spreading room up to 150mm² 4 core (one end only)
- RAL 7035 grey powder coat finish
- Designed and manufactured in the UK to BS EN 60947-3
Dimensions
Height: 530mm
Width: 315mm
Depth: 241mm
Technical Information
Designed for compliance and long-term reliability, the 191601N combines a durable IP4X steel enclosure with a padlockable operating handle to support safe isolation procedures. Its internal space and reversible door improve accessibility during installation and ongoing maintenance.
Downloads
Data Sheet:
Click here to view the data sheet
