Product Description

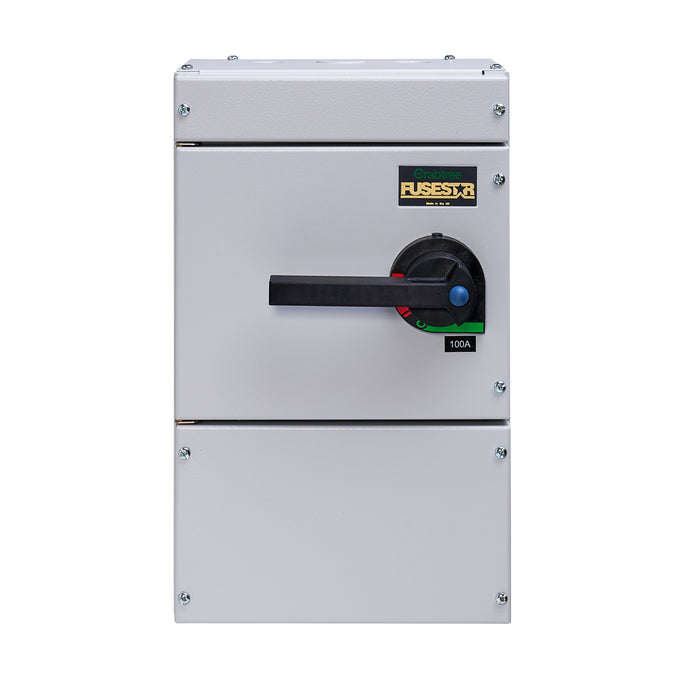

The Crabtree 191004F is a 100A 4 pole fuse combination unit supplied complete with 100A BS88 fuses. Designed for secure isolation and overcurrent protection, it is suitable for commercial and industrial installations requiring a four-pole configuration.

Note: This unit requires a 19LK200 neutral link (sold separately).

Key Features

• Supplied complete with 100A BS88 fuses
• Requires a 19LK200 neutral link (sold separately)
• 100A 4 pole fuse combination unit for reliable isolation and protection
• IP4X rated steel enclosure for enhanced operational safety
• Operating handle can be padlocked for secure lock-off procedures
• Front door reversible with 180° opening for improved accessibility
• Accommodates cable spreading room up to 70mm² 4 core (one end only)
• For a 4 core cable at both ends, an additional cable spreader (19100CSB) is required
• RAL 7035 grey powder coat finish
• Designed and manufactured in the UK to BS EN 60947-3

Dimensions

Height: 425mm
Width: 263mm
Depth: 188mm

Technical Information

Engineered for dependable performance and regulatory compliance, the 191004F provides a robust four-pole isolation point with integrated fuse protection. The durable IP4X steel enclosure, padlockable handle, and generous internal capacity support safe operation, efficient installation, and straightforward maintenance.

Downloads

Data Sheet:
Click here to view the data sheet
