Product Description

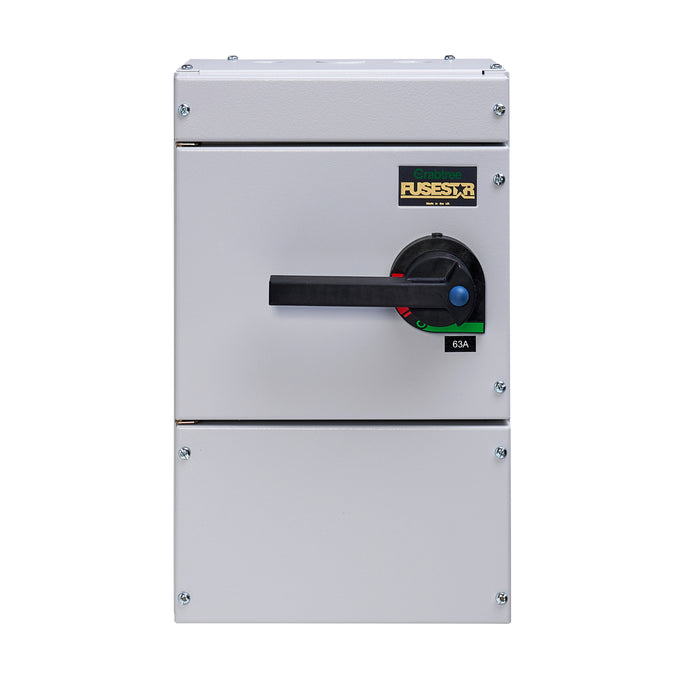

The Crabtree 190631NF is a 63A 1P+N fuse combination unit supplied complete with 63A BS88 fuses. Designed for safe isolation and overcurrent protection, it is suitable for commercial and light industrial electrical installations requiring a higher current single-phase solution.

Key Features

• Supplied complete with 63A BS88 fuses
• 63A 1P+N fuse combination unit for reliable isolation and protection
• IP4X rated steel enclosure for enhanced safety
• Operating handle can be padlocked for secure lock-off
• Front door reversible with 180° opening for improved accessibility
• Accommodates cable spreading room up to 70mm² 4 core (one end only)
• RAL 7035 grey powder coat finish
• Designed and manufactured in the UK to BS EN 60947-3

Dimensions

Height: 425mm
Width: 263mm
Depth: 188mm

Technical Information

Built for dependable performance and regulatory compliance, the 190631NF provides a robust isolation point within a durable IP4X steel enclosure. Its increased internal capacity supports larger cable terminations, while the padlockable handle and reversible door promote safe working practices and ease of maintenance.
