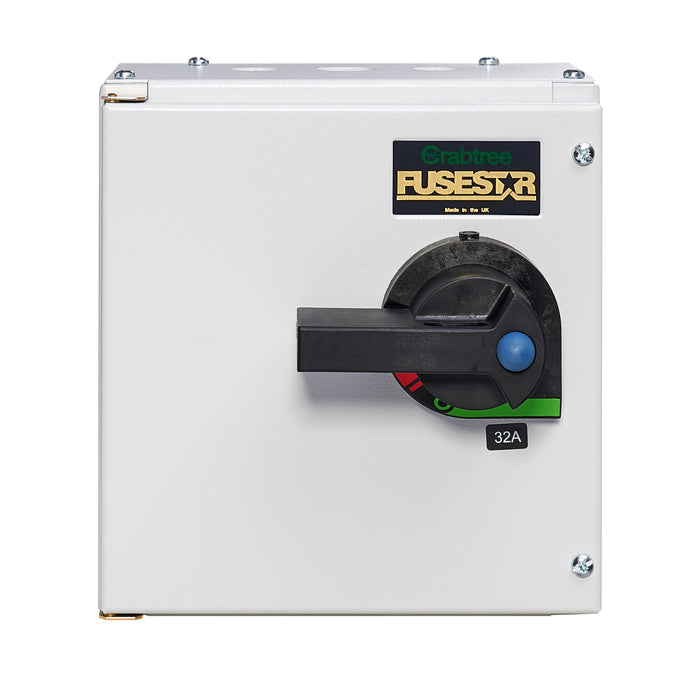

Product Description

The Crabtree 190323NF is a compact 32A 3P+N fuse combination unit supplied complete with 32A BS88 fuses. Designed for safe isolation and three-phase circuit protection, it is ideal for commercial and light industrial electrical installations.

Key Features

• Supplied complete with 32A BS88 fuses
• 32A 3P+N fuse combination unit for reliable three-phase isolation and protection
• IP4X rated steel enclosure for enhanced safety
• Operating handle can be padlocked for secure lock-off
• Front door reversible with 180° opening for improved accessibility
• Accommodates cable spreading room up to 10mm² 4 core (one end only)
• For a 4 core cable at both ends, an additional cable spreader (19032CSB) is required
• RAL 7035 grey powder coat finish
• Designed and manufactured in the UK to BS EN 60947-3

Dimensions

Height: 225mm
Width: 210mm
Depth: 136mm

Technical Information

Built for dependable performance and regulatory compliance, the 190323NF provides a secure three-phase isolation point within a compact IP4X steel enclosure. The padlockable operating handle, generous internal layout, and wide-opening door support efficient installation and ongoing maintenance.

Downloads

Data Sheet:
Click here to view the data sheet
