Product Description

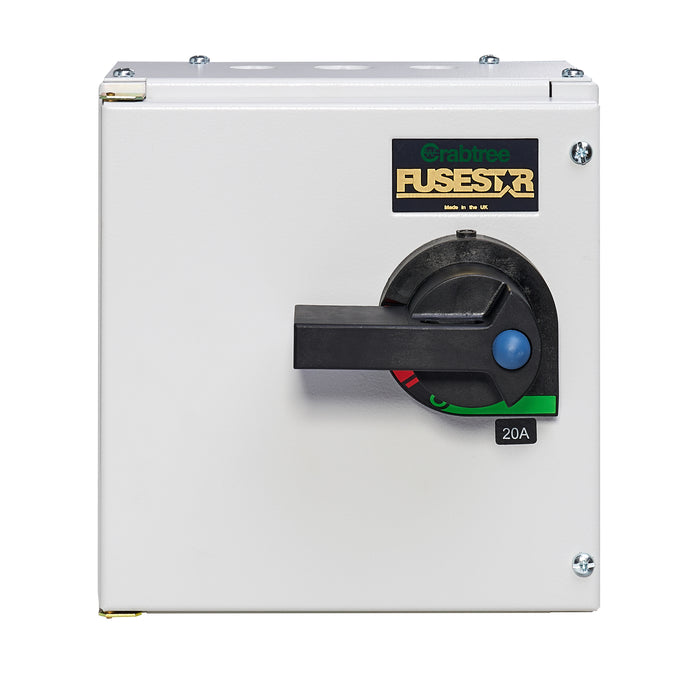

The Crabtree 190204F is a compact 20A 4 pole fuse combination unit supplied complete with 20A BS88 fuses. Designed for safe isolation and overcurrent protection, it is suitable for commercial and light industrial installations requiring a four-pole configuration.

Note: This unit requires a 19LK32 neutral link (sold separately).

Key Features

• Supplied complete with 20A BS88 fuses
• Requires a 19LK32 neutral link (sold separately)
• 20A 4 pole fuse combination unit for secure isolation and protection
• IP4X rated steel enclosure for enhanced safety
• Operating handle can be padlocked for secure lock-off
• Front door reversible with 180° opening for improved accessibility
• Accommodates cable spreading room up to 10mm² 4 core (one end only)
• For a 4 core cable at both ends, an additional cable spreader (19032CSB) is required
• RAL 7035 grey powder coat finish
• Designed and manufactured in the UK to BS EN 60947-3

Dimensions

Height: 225mm
Width: 210mm
Depth: 136mm

Technical Information

Designed for dependable performance and compliance, the 190204F provides a compact and robust isolation point with integrated fuse protection. The padlockable handle supports safe working practices, while the durable IP4X steel enclosure ensures long-term reliability.
