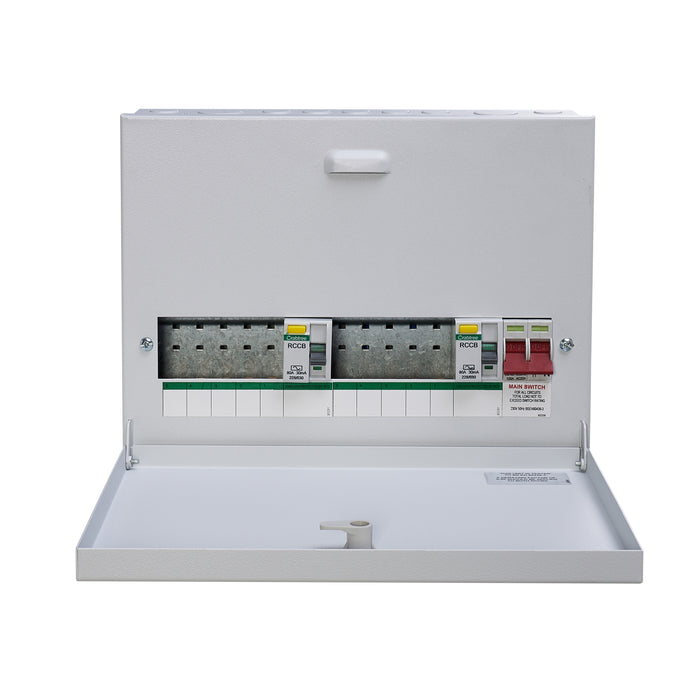

Crabtree 18PSC10/S513A Polestar Compact 10 Way (5+5) Split Load Type A 1P+N Distribution Board c/w Dual RCCB
Crabtree 18PSC10/S513A Polestar Compact 10 Way (5+5) Split Load Type A 1P+N Distribution Board
The Crabtree Polestar 18PSC10/S513A Distribution Board is a compact, split-load solution designed to deliver enhanced protection and flexibility in commercial and light industrial electrical installations. This 10 way (5+5) Type A 1P+N distribution board allows outgoing circuits to be evenly divided across two protected sections.
Supplied complete with two 80A 30mA two pole RCCB incomers, the board provides reliable residual current protection while helping to minimise disruption in the event of a fault. A 125A two pole switch disconnector is also included, allowing all outgoing ways to be isolated safely. Designed and manufactured in the UK to BS EN 61439-3, it offers proven reliability and compliance.
Key Features
- Compact 10 way surface-mounted distribution board
- Split load configuration: 5 + 5 outgoing ways
- 1 Pole + Neutral (1P+N) Type A arrangement
- Supplied with 2 × 80A 30mA 2 pole RCCB incomers
- 125A 2 pole switch disconnector for full board isolation
- Designed and manufactured in the UK
- Complies with BS EN 61439-3
- RAL 7035 grey powder-coated steel enclosure
- Suitable for commercial and light industrial installations
Technical Overview
- Product Type: Split Load Surface Distribution Board
- Number of Ways: 10 (5 + 5)
- Rated Current: 125A
- Incomer Protection: Dual 80A 30mA RCCBs
- Main Isolator: 125A 2 Pole Switch Disconnector
- Poles: 1P+N
- Board Type: Type A
- Mounting: Surface
- Range: Crabtree Polestar
