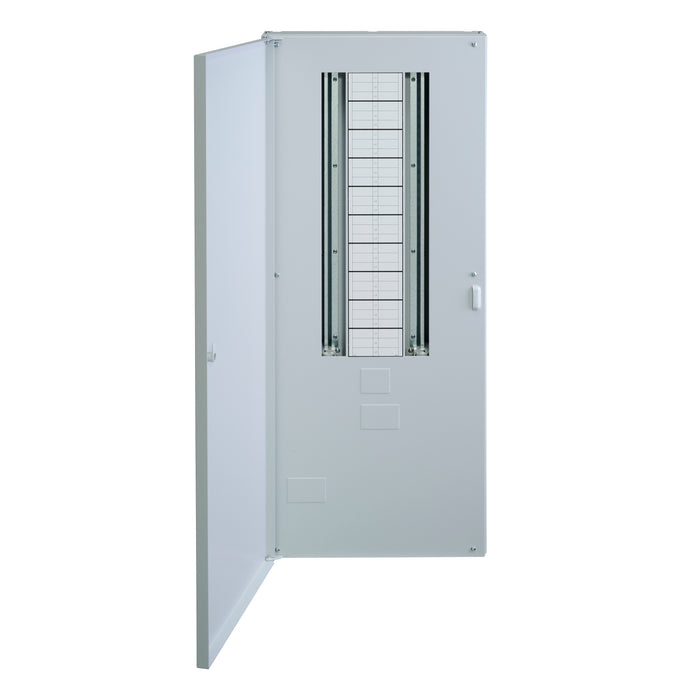

Crabtree 18LS20L Loadstar 20 Way 125A 3P+N Surface Distribution Board

Product Overview

The Crabtree 18LS20L Loadstar 20 Way 125A 3P+N Surface Distribution Board is the largest capacity surface-mounted option in the Loadstar 125A three-phase range, designed for high-demand commercial and industrial electrical installations. With a 125A rated capacity and extensive circuit accommodation, it provides exceptional flexibility for complex power distribution systems.

Manufactured in the UK to BS EN 61439-3, this Loadstar distribution board delivers robust build quality, regulatory compliance, and full compatibility with Crabtree Loadstar protection devices and system accessories.

Key Features & Benefits

• 20-way 3P+N Type ‘B’ surface mounted distribution board.
• Rated at 125A for three-phase power distribution.
• Available with switch disconnector, RCCB, or direct connection incomer options.
• Compatible with Crabtree Loadstar 10kA MCBs:
  • Single pole and triple pole Type B, C, and D MCBs from 6A to 63A.
  • Single pole Type B and C RCBOs from 6A to 50A.
• Supports optional accessories including:
  • LS125MPKIT – Pulsed Output / Modbus RTU metering kit.
  • LS125MIDMPKIT – MID-approved integral metering kit.
  • LS125SPKITL – Integral Type 2 surge protection kit.
• Durable RAL 7035 grey powder-coated steel enclosure.
• Designed and manufactured in the UK to BS EN 61439-3.

Ideal Applications

Ideal for large commercial premises, industrial facilities, plant rooms, data infrastructure, and complex electrical installations requiring high circuit density and dependable three-phase distribution.

Technical Summary

• Ways: 20
• Rated Current: 125A
• Poles: 3P+N
• Mounting: Surface
• Type: B
• Standard: BS EN 61439-3
• Finish: RAL 7035 Grey Powder Coat

Data Sheet

Click here to download the data sheet
