Crabtree 18LPV1208SL Loadstar Vertical 125A TP&N Lighting & Power Board 12+8 Way Pulsed Output / Modbus

Product Description

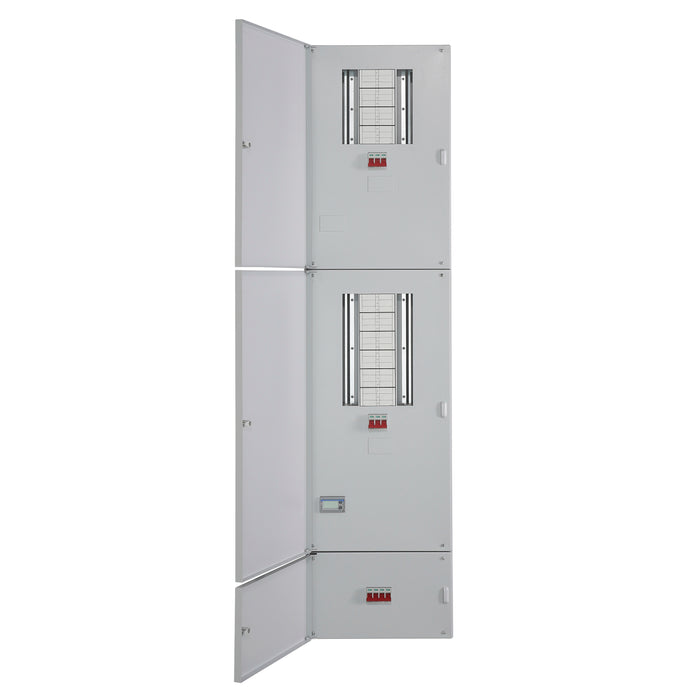

The Crabtree 18LPV1208SL Loadstar Vertical Lighting & Power Distribution Board is a 125A TP&N commercial distribution solution designed for installations requiring a higher number of circuits for both power and lighting, combined with integrated energy monitoring. With a 12-way power section and an 8-way lighting section, it offers flexibility and scalability for larger commercial environments.

Supplied complete with a switch disconnector and an integrated two-channel pulsed output / Modbus RTU energy meter, this board supports compliance with Building Regulations Part L2 and provides clear energy usage data for property managers, consultants, and facilities teams.

Key Features & Benefits

• 125A TP&N vertical lighting and power distribution board
• 12-way power and 8-way lighting configuration
• Designed for commercial applications supporting Part L2 compliance
• Supplied with switch disconnector for safe isolation
• Integrated two-channel pulsed output and Modbus RTU energy meter
• Accepts Crabtree Loadstar 10kA final circuit protection devices
• Compatible with single pole and triple pole Type B, C and D MCBs (6A–63A)
• Compatible with single pole Type B and C RCBOs (6A–50A)
• Individual isolation for top and bottom sections, each fully rated at 125A
• Durable RAL 7035 grey powder-coated finish
• Designed and manufactured in the UK to BS EN 61439-3

Applications

Ideal for larger commercial buildings, multi-occupancy developments, and managed properties where a greater number of lighting and power circuits is required, alongside integrated energy monitoring and compliance with current building regulations.

Technical Documentation

Data Sheet:
Click here to download the data sheet
