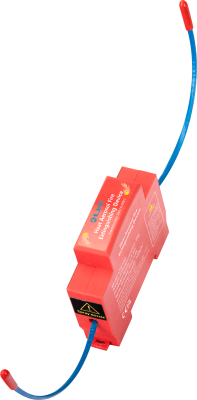

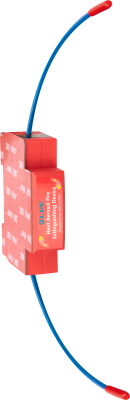

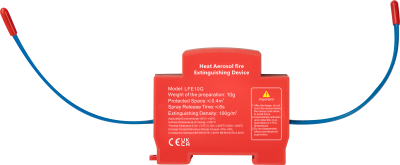

LIVE Electrical LFE10G Heat Aerosol Fire Extinguishing Device

The LIVE Electrical LFE10G is a compact heat-activated aerosol fire extinguishing device designed for small enclosed electrical spaces. Engineered for rapid automatic response, it releases a fire-suppressing aerosol in seconds to help control developing fires before they escalate.

The extinguishing compound is formed from a solid thermosolv aerosol-generating agent containing an oxidising agent, reducing agent, combustion-rate controller and binder. Once activated, the unit produces a concentrated fire-extinguishing aerosol that works through multiple suppression mechanisms. Fine metal salt particles absorb heat from the flame, helping to reduce flame temperature, while active combustion radicals are chemically interrupted to slow and suppress the fire. In addition, the generated gases help lower oxygen concentration within the protected space, improving overall extinguishing performance.

Because the aerosol remains suspended for a prolonged period, it can disperse throughout the enclosure and provide effective total flooding of the protected area. This makes the LFE10G a practical solution for compact cabinets, control panels and other sensitive electrical installations where a fast, clean-response fire suppression method is required.

Key Features

• Rapid spray release time of ? 6 seconds
• Suitable for operating temperatures from -50°C to +90°C
• Designed for environments with humidity below 95% RH
• Oxidiser / strontium nitrate content: 50%–58%
• Protects spaces up to 0.1 m³
• 35 mm DIN rail mounting for straightforward installation
• Temperature-sensing wire activation
• Fast-response, high-efficiency fire suppression
• Environmentally considerate, residue-free discharge
• Suitable for enclosed spaces and electrical equipment
• Compact DIN-rail mountable design

Dimensions

• Height: 87 mm
• Width: 18 mm
• Depth: 60 mm
