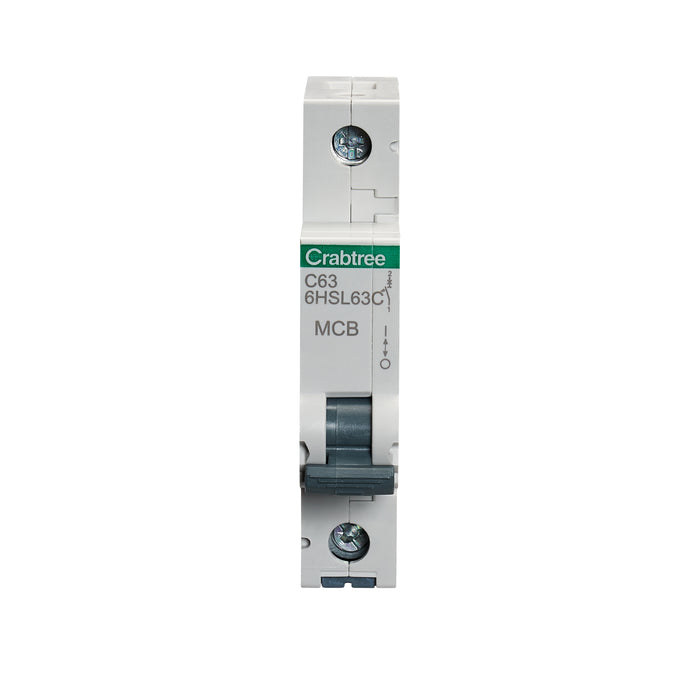

Crabtree 6HSL63C Loadstar 63A Single Pole Type C 10kA MCB

Product Description

The Crabtree 6HSL63C Loadstar 63A Type C Miniature Circuit Breaker is designed for high-load electrical circuits, providing dependable protection against overloads and short circuits in installations with moderate inrush currents. Fully compatible with Crabtree Loadstar distribution boards, this single pole MCB ensures fast and reliable circuit isolation during fault conditions.

Featuring a Type C trip characteristic (5–10 In), this breaker is ideally suited to applications such as large motors, transformers, and inductive loads. It delivers a robust 10kA breaking capacity to BS EN 60898-1, with enhanced performance up to 15kA to BS EN 60947-2.

Key Features

• 63A rated current for high-load circuit protection
• Type C trip curve (5–10 In) for moderate inrush current applications
• Single pole MCB for phase protection
• 10kA breaking capacity to BS EN 60898-1 at 240V AC
• 15kA breaking capacity to BS EN 60947-2
• Energy limiting Class 3 to reduce let-through energy
• Designed for use with Crabtree Loadstar distribution boards

Standards & Compliance

• BS EN 60898-1
• BS EN 60947-2

Technical Documentation

Data Sheet: Click here to view the data sheet
