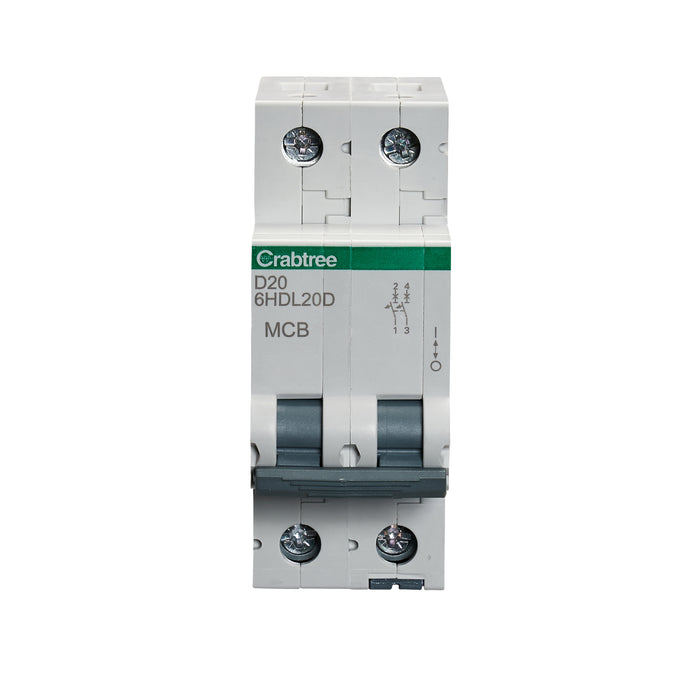

Crabtree 6HDL20D Loadstar 20A Double Pole D Curve 10kA MCB
Crabtree 6HDL20D Loadstar 20A Double Pole Type D 10kA MCB
Product Description
The Crabtree 6HDL20D Loadstar 20A Type D Double Pole Miniature Circuit Breaker is engineered to provide robust protection against overloads and short circuits while ensuring full isolation of both live and neutral conductors. Designed for use with Crabtree Loadstar distribution boards, this DP MCB is ideal for demanding commercial and industrial installations.
Featuring a Type D trip characteristic (10–20 In), this breaker is particularly suited to circuits supplying motors, transformers, welding equipment, and other heavy inductive loads where very high inrush currents are present. It delivers a dependable 10kA breaking capacity to BS EN 60898-1, with enhanced performance up to 15kA to BS EN 60947-2.
Key Features
- 20A rated current for high inrush current circuit protection
- Type D trip curve (10–20 In) for very high inrush current applications
- Double pole MCB for full live and neutral isolation
- 10kA breaking capacity to BS EN 60898-1 at 240V AC
- 15kA breaking capacity to BS EN 60947-2
- Energy limiting Class 3 to minimise let-through energy
- Compatible with Crabtree Loadstar distribution boards
Standards & Compliance
- BS EN 60898-1
- BS EN 60947-2
Technical Documentation
Data Sheet: Click here to view the data sheet
