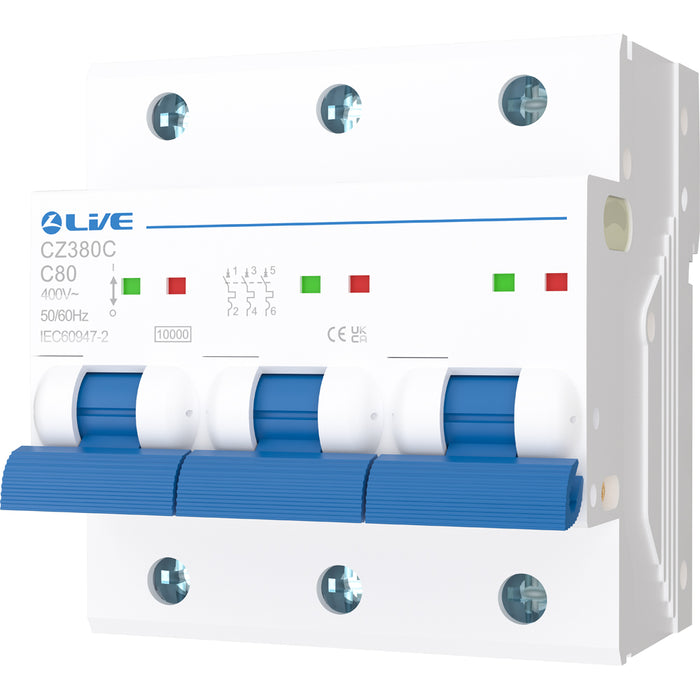

LIVE Electrical CZ380C Triple Pole 80A C Curve 10kA MCB

Name: LIVE Electrical CZ380C Triple Pole 80A C Curve 10kA MCB
Brand: LIVE Electrical
SKU: CZ380C
Price: 22.68 GBP
Availability: InStock

LIVE Electrical CZ380C Triple Pole 80A C Curve 10kA MCB

Availability:

Delivery in 5-7 Days

SKU CZ380C

£22.68 - £22.68

£18.90

Exc VAT

£22.68

Inc VAT

£22.68 - £22.68

£22.68

£18.90 - £18.90

£22.68

Product Description

Customer Reviews

LIVE Electrical CZ380C Triple Pole 80A C Curve 10kA MCB

Product Description

3P 10kA Miniature Circuit Breakers (MCB)

CZ MCB is suitable for overload and short circuit protection under AC 50/60Hz ,rated voltage 230/400Vand current rating no more than 125A.This circuit breaker can also be used for infrequent switching of circuits.

Features & Benefits:

Poles: 3P
Rated voltage: AC 400V;
Rated current: 80A.
Rated insulation voltage: 500V;
Impulse withstand voltage: 6kV;
Thermal trip benchmark setting temperature: 30?
Tripping characteristics: C-curve 5-10 In
Breaking capacity: Icn=10kA
Terminal capacity: 50mm2.
Isolation function:Contact status indicator with red green color
Current protection action characteristics
Operational environment

a. Air temperature: -5 ? to 40 ?;
b. The average temperature within 24 hours shall not exceed+35 ?;
c. The altitude of the installation site generally does not exceed 2000m;
d. Pollution level: ?
e. Installation category: ?,?
c. The altitude of the installation site generally does not exceed 2000m
d. Pollution level: ?
e. Installation category: ?,?

Terminal torque:3.5Nm.
