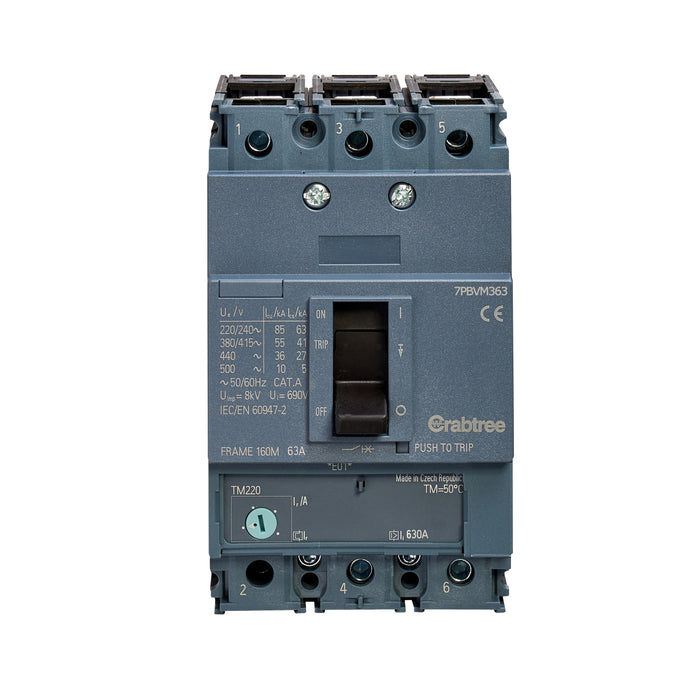

Crabtree 7PBVM363 Powerstar 63A 55kA 3P MCCB ATFM with Box Terminals

The Crabtree 7PBVM363 Powerstar MCCB is a premium-grade 63A three pole moulded case circuit breaker designed for commercial and industrial three phase installations where very high fault levels are present. With a substantial 55kA breaking capacity at 415V AC, it delivers advanced protection against overloads and short circuits in full compliance with BS EN 60947-2.

Featuring adjustable thermal and fixed magnetic (ATFM) trip elements, this MCCB allows precise overload configuration while ensuring rapid magnetic short-circuit protection. Supplied complete with box terminals fitted on both line and load sides, it ensures secure and efficient cable termination. Additional termination accessories are available if required.

This breaker is specifically intended for installation in Crabtree Powerstar VM160 outgoing ways, making it suitable for panel board upgrades, system expansions or direct replacements within compatible Powerstar distribution systems.

Key Features

• 63A three pole (3P) moulded case circuit breaker
• 55kA breaking capacity at 415V AC
• Compliant with BS EN 60947-2
• Adjustable thermal and fixed magnetic trip elements (ATFM)
• Box terminals fitted on line and load sides
• Additional termination accessories available
• Designed for Powerstar VM160 outgoing ways only

Applications

Ideal for demanding commercial and industrial three phase installations requiring very high fault level protection within Crabtree Powerstar VM160 panel boards.

Technical Specifications

• Rated Current: 63A
• Number of Poles: 3P
• Breaking Capacity: 55kA at 415V AC
• Trip Type: Adjustable thermal and fixed magnetic
• Standard: BS EN 60947-2
• Terminal Type: Box terminals (line and load)

Data Sheet:
View and download the Crabtree 7PBVM363 data sheet
