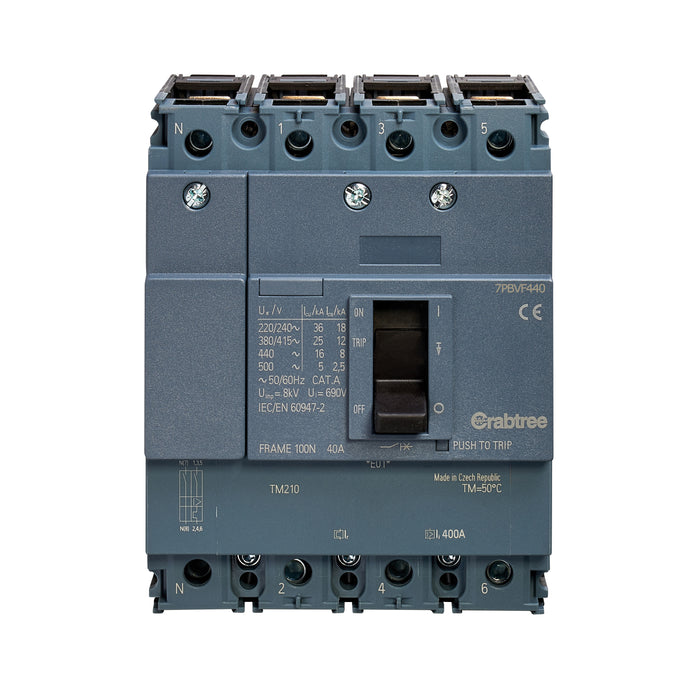

Crabtree 7PBVF440 Powerstar 40A 25kA 4P MCCB FTFM with Box Terminals

The Crabtree 7PBVF440 Powerstar MCCB is a dependable 40A four pole moulded case circuit breaker designed for commercial and industrial three phase distribution systems where neutral switching is required. With a 25kA breaking capacity at 415V AC, it delivers reliable protection against overloads and short circuits in accordance with BS EN 60947-2.

Featuring fixed thermal and magnetic (FTFM) trip elements, this MCCB provides consistent, factory-set protection characteristics for straightforward installation and coordination. The breaker is supplied complete with box terminals fitted on both line and load sides, ensuring secure and efficient cable termination. Additional termination accessories are available if required.

This unit is specifically designed for use in Crabtree Powerstar VM160 outgoing ways, making it suitable for panel board upgrades, system expansions or direct replacements within compatible Powerstar distribution assemblies.

Key Features

• 40A four pole (4P) moulded case circuit breaker
• 25kA breaking capacity at 415V AC
• Compliant with BS EN 60947-2
• Fixed thermal and magnetic trip elements (FTFM)
• Box terminals fitted on line and load sides
• Additional termination accessories available
• Designed for Powerstar VM160 outgoing ways only

Applications

Ideal for commercial and industrial three phase installations requiring four pole protection within Crabtree Powerstar VM160 panel boards.

Technical Specifications

• Rated Current: 40A
• Number of Poles: 4P
• Breaking Capacity: 25kA at 415V AC
• Trip Type: Fixed thermal and magnetic
• Standard: BS EN 60947-2
• Terminal Type: Box terminals (line and load)

Data Sheet:
View and download the Crabtree 7PBVF440 data sheet
