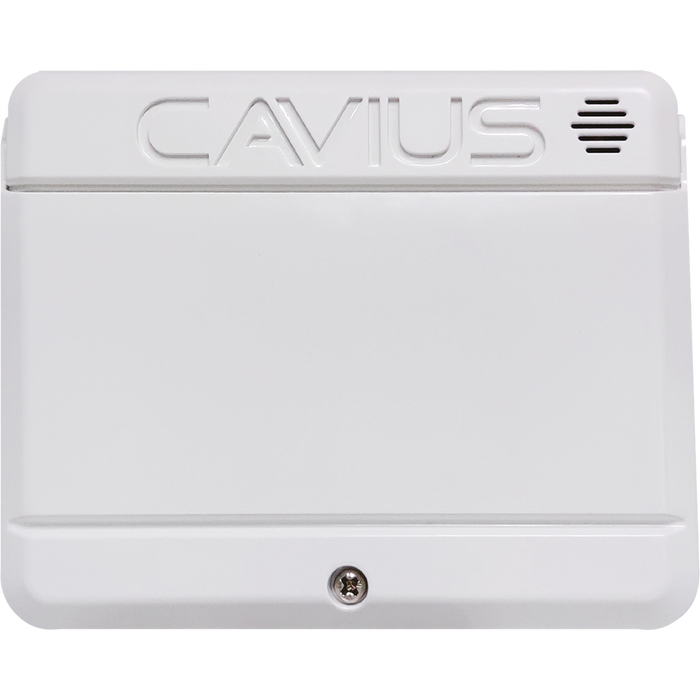

Cavius CV9004 Mains Powered Relay Interface with RF Interconnect

SKU CV9004
Availability:
Dispatch in 2-3 Days
Original price £58.32 - Original price £58.32
Original price
£58.32
Inc VAT
£48.60
Exc VAT
£58.32 - £58.32
Current price £48.60
£48.60 - £48.60
Current price £48.60
Request a quote
Read More...

Cavius CV9004 Mains Powered Relay Interface with RF Interconnect

Features:

  • Enables a connection between an external system or between devices and the CAVIUS wireless family.
  • Designed to connect external devices in a property such as telecare / warden control call systems, sprinkler systems, fire panels, strobes, and external sounders, etc.
  • Can enable essential and lifesaving connections to be made and provide protection and safety to vulnerable occupants when faced with a fire hazard in the property.
  • When a fire event is detected in a property, the relay interface unit allows connected external devices to be activated.

Specification:

  • Model CV9004
  • Power Supply 230V AC
  • Battery Replaceable CR2 battery back up
  • Output Relay Contacts Rating 250 V AC @ 5 Amps or 30V DC @ 5 Amps
  • Relay Output Latched or pulsed (user selectable)
  • Trigger Inputs Volt-free 3V DC output with return Voltage in: 3V - 30V
  • Low battery warning Sounds every 40 seconds for 30 days
  • Indicators Red LED for RF learn mode, alarm and fault condition Green LED for mains power condition
  • Installation Interface Button behind front cover for RF set-up and unit test
  • Installation Surface-mount
  • Relay Output The relay (NO/NC) activates when interlinked smoke / heat alarms detect an event
  • Trigger Input Interlinked Cavius smoke and heat alarms sound and the O/P relay to activates when triggered by an external device

Data Sheet:

Click Here for Data Sheet
