Product Description

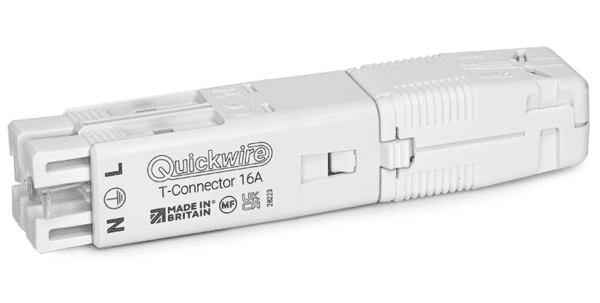

The Quickwire QTPS3 is a 16A plug-in T-Connector designed to deliver fast, secure and maintenance free electrical connections. Featuring a 3-pole plug and socket configuration, the plug accepts flexible or rigid cable while the socket provides two loop-in loop-out connections for solid core twin and earth cable.

Designed for speed and convenience, the QTPS3 fits through a 30mm diameter hole and allows easy disconnection for testing and maintenance. This makes it an ideal solution for modern lighting installations where time savings, safety and compliance are essential.

Features & Benefits

• Maintenance free 16A T-Connector plug and socket
• Compact design fits through a 30mm diameter hole
• One-piece plug moulding with snap-shut cord grip
• Easy disconnection for inspection, testing and maintenance
• Significant time savings during installation
• Compatible with flexible and solid core conductors
• Pre-flexed plugs available
• Designed and manufactured in Great Britain

Technical Specification

Plug Specifications

• Rated Voltage: 250V AC
• Rated Current: 16A (overcurrent protection limited to 16A)
• Poles: 3 pole
• Cable Entry: 1 x flexible cable (Class 5/6 conductors) or 1 x rigid cable (Class 1 conductors)
• Conductor Size: 0.5mm² – 1.5mm²
• Termination: Screw terminals
• Cord Grip Size: Max 8.0mm Ø / Min 4.0mm Ø
• Dimensions: 23mm x 24mm x 60mm (fits through a 30mm hole)
• IP Rating: IP20 (when plugged in)

Socket Specifications

• Rated Voltage: 250V AC
• Rated Current: 16A (overcurrent protection limited to 16A)
• Poles: 3 pole
• Cable Entry: 2 x 1.0mm² – 1.5mm² Twin & Earth CPC cable (6242Y or 6242B), solid cores (Class 1)
• Termination: Quickwire push-fit technology
• Cord Grip: Fully automatic
• Dimensions: 23mm x 24mm x 60mm (fits through a 30mm hole)
• IP Rating: IP30

Applications

• Lighting circuit connections
• Maintenance free wiring installations
• Loop-in loop-out cable configurations
• Commercial and domestic electrical projects
• Installations requiring easy testing and disconnection

Downloads

Data Sheet:
Click here to download the Quickwire QTPS3 data sheet
