Product Description

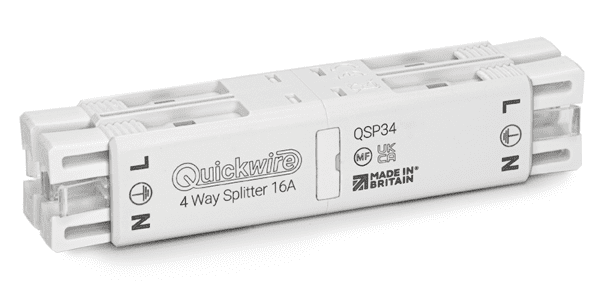

The Quickwire QSP34 is a 16A maintenance free 4 way splitter designed for safely extending and distributing lighting circuits. It provides four interconnected terminals, allowing circuits to be split or extended quickly and efficiently without the need for future access.

Featuring Quickwire’s lightning-fast push-in connection technology, the QSP34 enables rapid, tool-free installation. Its compact design allows it to fit through a 30mm hole, making it ideal for concealed wiring in ceilings, walls and junction boxes while remaining fully compliant with BS 5733-MF.

Features & Benefits

• Maintenance free connector – no ongoing access required
• No earth sleeving required
• Ideal for extending and distributing lighting circuits
• Compact design fits through a 30mm hole
• Quickwire push-in technology for fast installation
• Compatible with Quickwire mounting clamp QMC_TB

Technical Specification

• Manufacturer: Quickwire
• Part Number: QSP34
• Product Type: 4 way splitter
• Rated Voltage: 250V AC
• Rated Current: 16A
• Overcurrent Protection: Limited to 16A
• Conductor Size: 1.0mm² – 1.5mm² Twin & Earth CPC cable (6242Y or 6242B), solid cores (Class 1)
• Dimensions: 23mm x 24mm x 84mm (with cable entries inserted)
• IP Rating: IP30
• Standards: BS EN 60670-22, BS 5733-MF
• Mounting: Compatible with Quickwire mounting clamp QMC_TB

Typical Applications

• Lighting circuit distribution
• Extending lighting cable runs
• Maintenance free junctions
• Concealed wiring installations
• Domestic and commercial lighting systems

Downloads

Data Sheet:
Click here to download the Quickwire QSP34 data sheet
