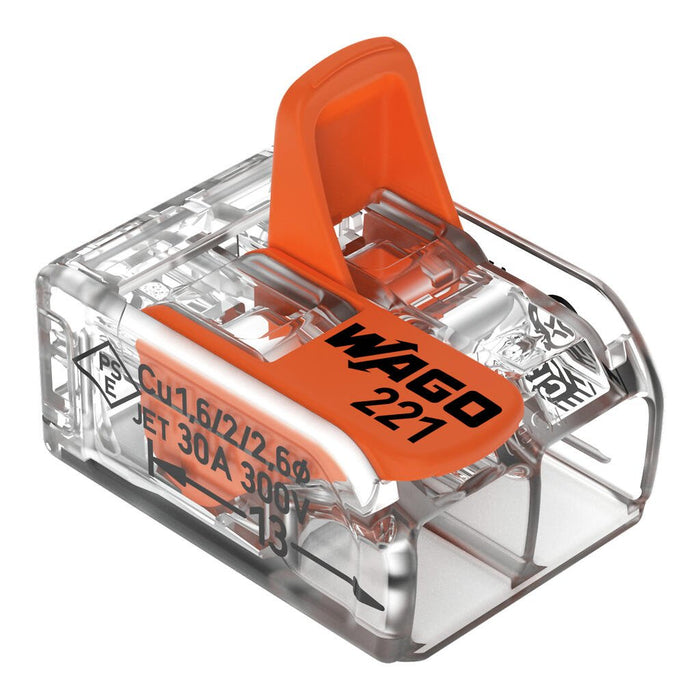

Wago 221-612 6mm² 2-Way Compact Splicing Connector - Transparent

COMPACT Splicing Connector; for all conductor types; max. 6 mm²; 2-conductor; with levers; transparent housing; Surrounding air temperature: max 85°C (T85); 6,00 mm²; transparent

Your Benefits:

• Ease of use – pull the lever up, insert a conductor and push the lever back down
• Available as 2-wire, 3-wire and 5-wire connectors
• Easily terminate conductors from 0.5 to 6 mm²
• Connection of all conductor types
• Time savings for installers and device manufacturers
• Quickly install devices with higher power consumption
• Safely install long cable runs with larger conductor cross sections
• Mounting carrier for installation conforms to standards
• Custom carriers are possible

Electrical Data:

• Ratings per: EN 60664
• Nominal voltage (II/2): 450V
• Rated surge voltage (II/2): 4kV
• Rated current: 41A
• Legend (ratings): (II / 2) ? Overvoltage category II / Pollution degree 2

• Approvals per: UL 486C
• Rated voltage UL (Use Group C): 600V
• Rated current UL (Use Group C): 30A

Connection Data:

• Total number of connection points: 2
• Total number of potentials: 1

Connection 1:

• Connection Technology: CAGE CLAMP
• Actuation type: Lever
• Connectable conductor materials: Copper
• Nominal cross-section: 6 mm² / 10 AWG
• Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
• Strip length: 12 … 14 mm / 0.47 … 0.55 inch
• Wiring direction: Side-entry wiring

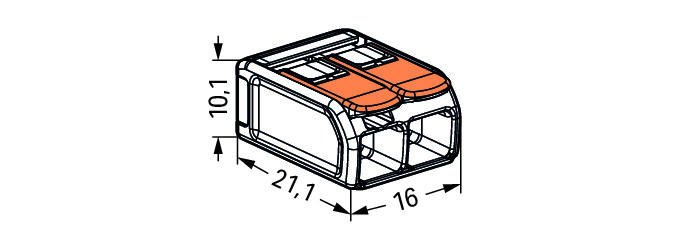

Physical Data:

• Width: 16 mm / 0.63 inch
• Height: 10.1 mm / 0.398 inch
• Depth: 21.1 mm / 0.831 inch

Material Data:

• Color: Transparent
• Cover color: Transparent
• Flammability class per UL94: V2
• Fire load: 0.05MJ
• Actuator color: Orange
• Weight: 3g

Environmental Requirements

• Ambient temperature (operation): +85 °C
• Continuous operating temperature: 105 °C
• Temperature marking per EN 60998: T85
