SPECIAL ORDER ITEM: 6-7 weeks Lead Time, please contact us to find out more

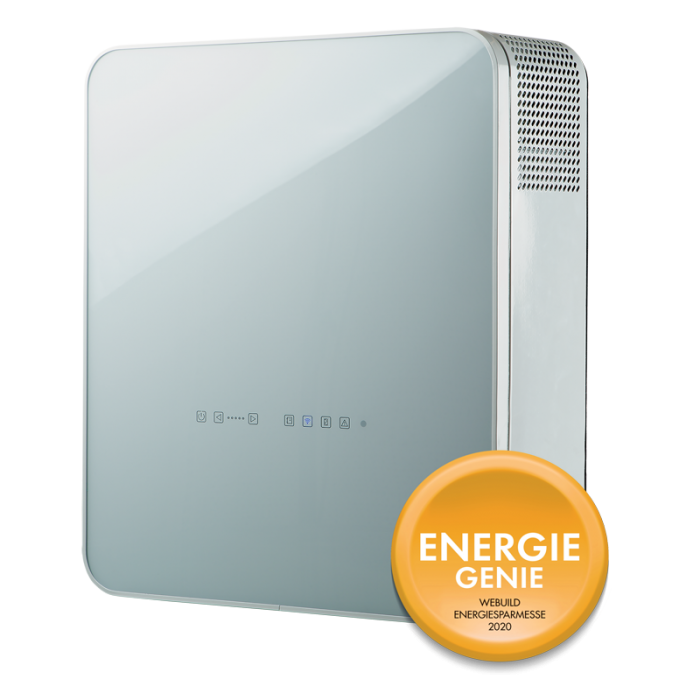

Blauberg FRESHBOX-100-WIFI Freshbox 100 Wifi Single Room Heat Recovery Unit

• An ultra modern single room heat recovery unit that would suit any contemporary room.
• Variable speed control up to an impressive 100 m3/hour (27 l/s) extract and supply airflow rate.
• German engineered design with anti vibration mounts ensures low noise, only 25 dBA sound level.
• Full Wifi control with optional heaters, allergy, pollen and carbon filters for ultimate indoor air environment control.
• Fitted with a German Blauberg motor and backed with a 5 year warranty.

• Efficient solution for supply and exhaust ventilation of enclosed spaces.
• Electric preheater or reheater modification available for cold climate conditions.
• Heat exchanger with an enthalpy membrane modification available for humid and hot climate conditions.
• Low-energy EC motors
• Silent operation.
• Upgradeable with an exhaust duct to provide air extraction from the bathroom.
• Easy installation.
• Compact size.
• Controlled by Android or iOS smartphone or tablet over Wi-Fi.

• Polymer coated metal casing decorated with an acrylic front panel. Heat and noise insulation is ensured by a layer of 10 mm cellular synthetic rubber.
• The front panel provides convenient access for filter maintenance and has a lock for extra security.
• The unit has two ? 100 mm pipes for fresh air intake and stale air extraction outside. The third ? 100 mm pipe (included in the scope of delivery) can be additionally fitted to the unit to connect the exhaust air duct from the bathroom.

• The units feature efficient electronically commutated (EC) motors with an external rotor and impellers with forward curved blades. These stateof- the-art motors are the most advanced solution in energy efficiency today.
• EC motors are characterised with high performance and optimum control across the entire speed range. In addition to that the efficiency of electronically commutated motors reaches very impressive levels of up to 90 %.

• The unit is equipped with supply and exhaust air dampers which activate automatically to prevent drafts while the unit is off.

• Freshbox 100 WiFi, Freshbox E-100 WiFi: supply air cleaning is provided by the G4 and F8 filters. To meet more stringent air purity requirements the F8 filter can be replaced with an H13 or F8 carbon filter (purchased separately). Exhaust air is cleaned by the filter G4.
• Freshbox E1-100 WiFi, Freshbox E2-100 WiFi: the built-in G4 supply filter and G4 extract filter provide air filtration.

• The cold outdoor air passes through the filters and the heat exchanger and then is delivered to the serviced space by the supply centrifugal fan.
• Warm stale air from indoors passes through the filter and the heat exchanger and is discharged outdoors by the centrifugal fan.
• The supply and exhaust air flows are fully separated which helps eliminate the possibility of odour or microbial transfer between the streams.

• The Freshbox 100 WiFi units are equipped with a counter-flow heat recovery core with a polystyrene core.
• In the cold season the exhaust air heat is captured and transferred to the supply air stream which reduces the ventilation-generated heat losses. Some condensate may form during heat recovery. The condensate is collected in the drain pan and is removed from the exhaust air duct.
• In the warm season the intake air heat is transferred to the extract air stream. This allows for a considerable reduction of the supply air temperature which, in turn, reduces the air conditioning load.
• The Freshbox 100 ERV WiFi units are equipped with a counter-flow energy recovery core with an enthalpy membrane at the core.
• In the cold season the exhaust air heat and moisture are transferred to the supply air stream through the enthalpy membrane reducing the heat losses through ventilation.
• In the warm season the heat and humidity of the outdoor air is absorbed by extract air flow through the enthalpy membrane. This way the supply air temperature and humidity decreases and heat recovery reduces operation loads for the air conditioner.

• Freshbox E-100 WiFi, Freshbox E2-100 WiFi units are equipped with an electric preheater for freeze protection of the heat exchanger.

• Freshbox E1-100 WiFi, Freshbox E2-100 WiFi units feature an electric reheater to raise the supply air temperature as necessary.

• Freshbox 100 WiFi features an exhaust air temperature sensor downstream of the heat exchanger which disables the supply fan to let the warm extract air warm up the heat exchanger. After that the supply fan is turned on and the unit reverts to the normal operation mode.
• Overheating protection for Freshbox E-100 WiFi and Freshbox E2-100 WiFi is implemented with a preheater.

• The unit is equipped with a control panel.
• The remote control is supplied as standard
• Wi-Fi communication.

Data Sheet:

User Guide:
