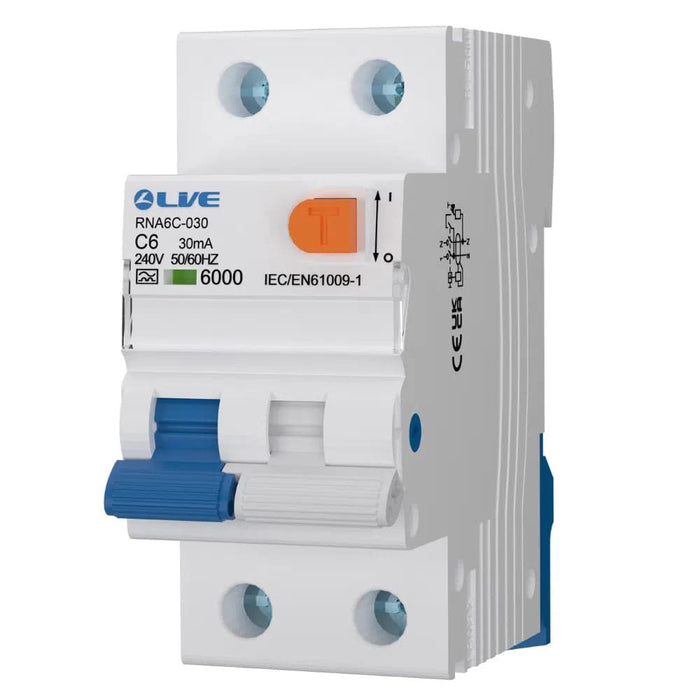

LIVE Electrical RNA6C-030 6A Double Pole C Curve Type A Bidirectional RCBO

The LIVE Electrical RNA6C-030 is a 6A double pole RCBO designed to provide reliable protection against overloads, short circuits and residual current faults in modern electrical installations. Featuring a C curve tripping characteristic, 30mA sensitivity and bidirectional capability, this device is well suited to applications where dependable circuit protection and compliance are essential.

Built as a twin switch Type A RCBO, the RNA6C-030 is designed for use on 230V AC systems and offers a 6kA breaking capacity. It combines strong electrical performance with long service life, making it a practical choice for residential, commercial and light industrial distribution boards.

Key Features

• 6A rated current
• Double pole (2P) RCBO
• C curve tripping characteristic
• 30mA rated residual operating current
• Type A protection
• Bidirectional operation
• Twin switch design
• 6kA breaking capacity
• 230V AC rated voltage
• Terminal cable capacity up to 16mm²
• Electrical endurance of 4,000 cycles
• Mechanical endurance of 100,000 cycles
• Manufactured in compliance with BS EN 61009-1

Technical Specification

• Model: RNA6C-030
• Brand: LIVE Electrical
• Rated current: 6A
• Rated voltage: 230V AC
• Breaking capacity: 6kA
• Rated residual current: 30mA
• Pole configuration: 2P
• Tripping characteristic: C curve
• Type: Type A
• Terminal capacity: 16mm²
• Compliance: BS EN 61009-1
