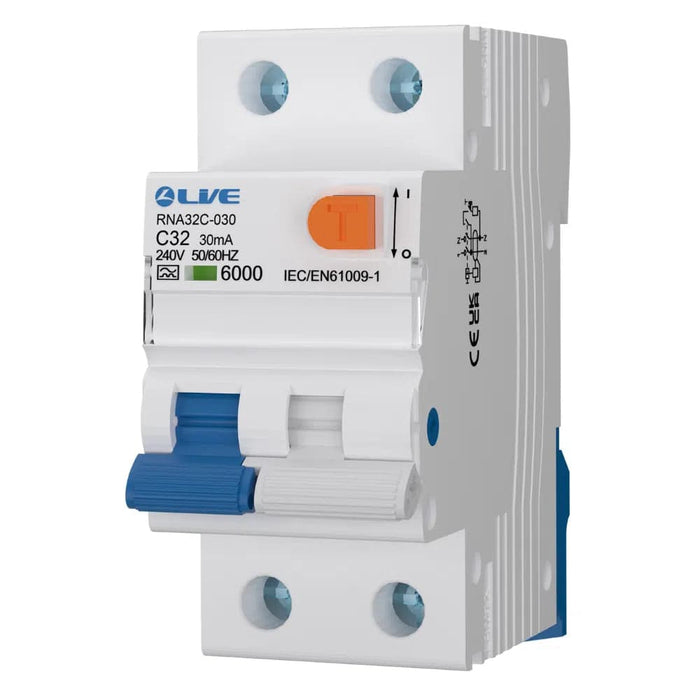

LIVE Electrical RNA32C-030 32A Double Pole C Curve Type A Bidirectional RCBO

The LIVE Electrical RNA32C-030 is a high-capacity 32A double pole RCBO designed to deliver dependable protection against overloads, short circuits and earth leakage faults. With a C curve tripping characteristic and 30mA sensitivity, it is ideal for circuits with moderate inrush currents, making it suitable for a wide range of domestic and commercial applications.

Featuring a twin switch Type A design, this RCBO supports bidirectional operation and is optimised for use on 230V AC systems. Its 6kA breaking capacity and durable construction ensure reliable long-term performance in modern distribution boards.

Key Features

• 32A rated current
• Double pole (2P) RCBO
• C curve tripping characteristic
• 30mA residual current sensitivity
• Type A protection – detects AC and pulsating DC faults
• Bidirectional functionality
• Twin switch design for safe isolation
• 6kA breaking capacity
• Suitable for 230V AC installations
• Terminal capacity up to 16mm²
• Electrical endurance: 4,000 cycles
• Mechanical endurance: 100,000 cycles
• Compliant with BS EN 61009-1

Technical Specification

• Model: RNA32C-030
• Brand: LIVE Electrical
• Rated current: 32A
• Rated voltage: 230V AC
• Breaking capacity: 6kA
• Rated residual current: 30mA
• Pole configuration: 2P
• Tripping characteristic: C curve
• Type: Type A
• Terminal capacity: 16mm²
• Compliance: BS EN 61009-1
